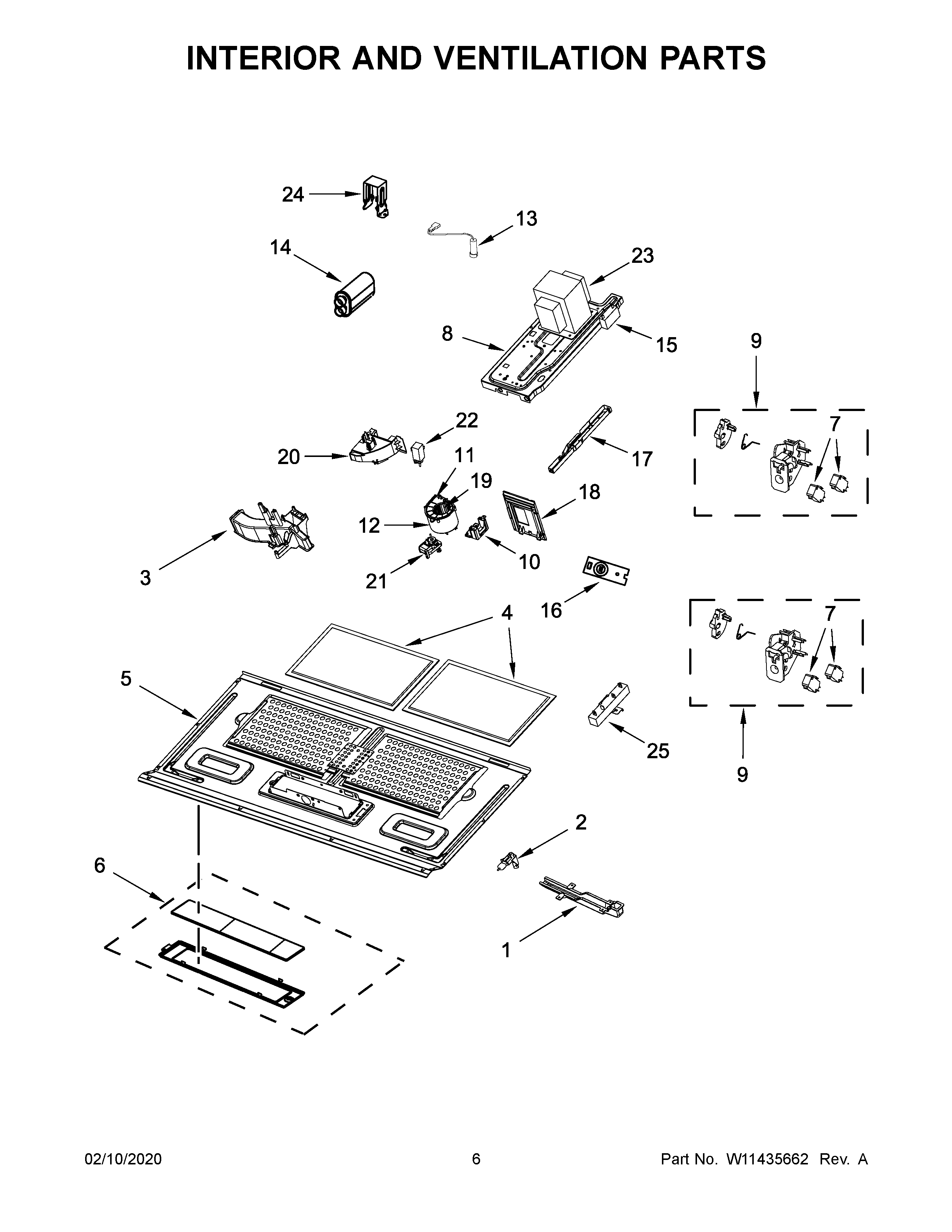

MMV6190FZ3 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY W10570212
2LAMP, HALOGEN
3ASSEMBLY, AIRGUIDE GRILLE
4FILTER, GREASE
5PLATE, BOTTOM
6ASSEMBLY, LAMP GLASS AND HOLDER
7LINER (NOT A SERVICEABLE PART)
8PLATE, COMPONENT
9ASSEMBLY, INTERLOCK (INCLUDES SWITCHES)
10MAY W10533480
11MAY W10533502
12MAY W10533501
13DIODE, HIGH VOLTAGE
14MAY W10561770
15MAY W10605897
16MAY W10536989
17MAY W10540718
18MAY W10533107
19MAY W10533503
20AIR GUIDE, MAGNETRON
21MOTOR, COOLING FAN
22MAY W10458325
23TRANSFORMER, HIGH VOLTAGE
24BRACKET, CAPACITOR
25MAY W11259891
