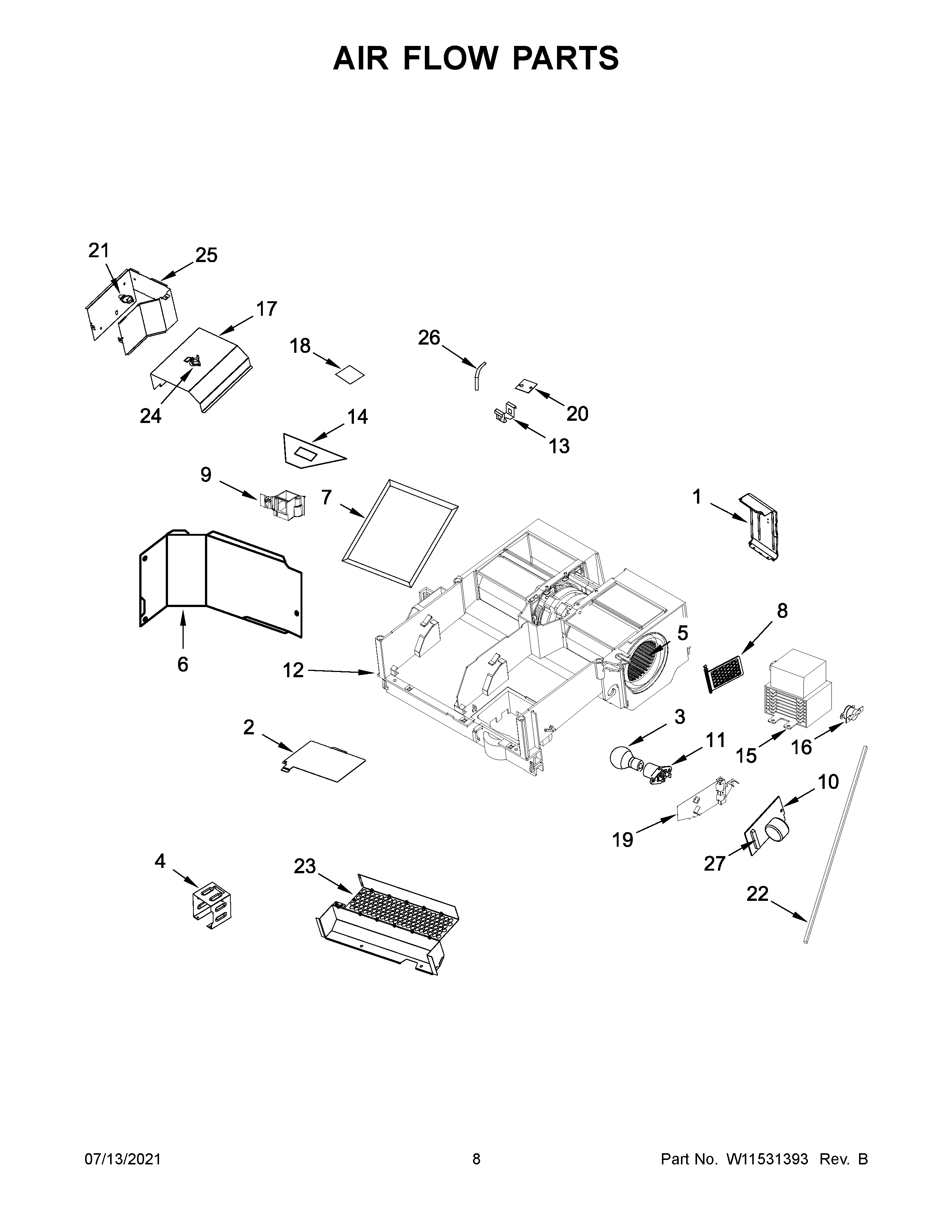

MMV6190FZ4 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	HOUSING, DAMPER
5	W11613599 Whirlpool Microwave Fan Motor
6	PLATE, AIR GUIDE
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10533486 Whirlpool Microwave Valve
9	OUTLET, CAVITY (FRONT)
10	WPW10531156 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	BASEPLATE, AIR GUIDE
13	8206223 Whirlpool Clip
14	W10810142 Whirlpool Relief Strain
15	W11230995 Whirlpool Microwave Magnetron
16	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
17	OUTLET, CAVITY (BACK)
18	W10531724 Whirlpool Microwave Lamp Glass
19	W11293488 Whirlpool Microwave Air Duct
20	W10259248 Whirlpool Microwave Cover Assembly
21	W10557536 Whirlpool Microwave Sensor
22	SEAL, FOAM
23	W10715053 Whirlpool Side Cover
24	W11661583 Whirlpool Thermostat Fix
25	W10533483 Whirlpool Microwave Air Guide
26	W10557537 Whirlpool Microwave Thermistor
27	FUSE-THRML
