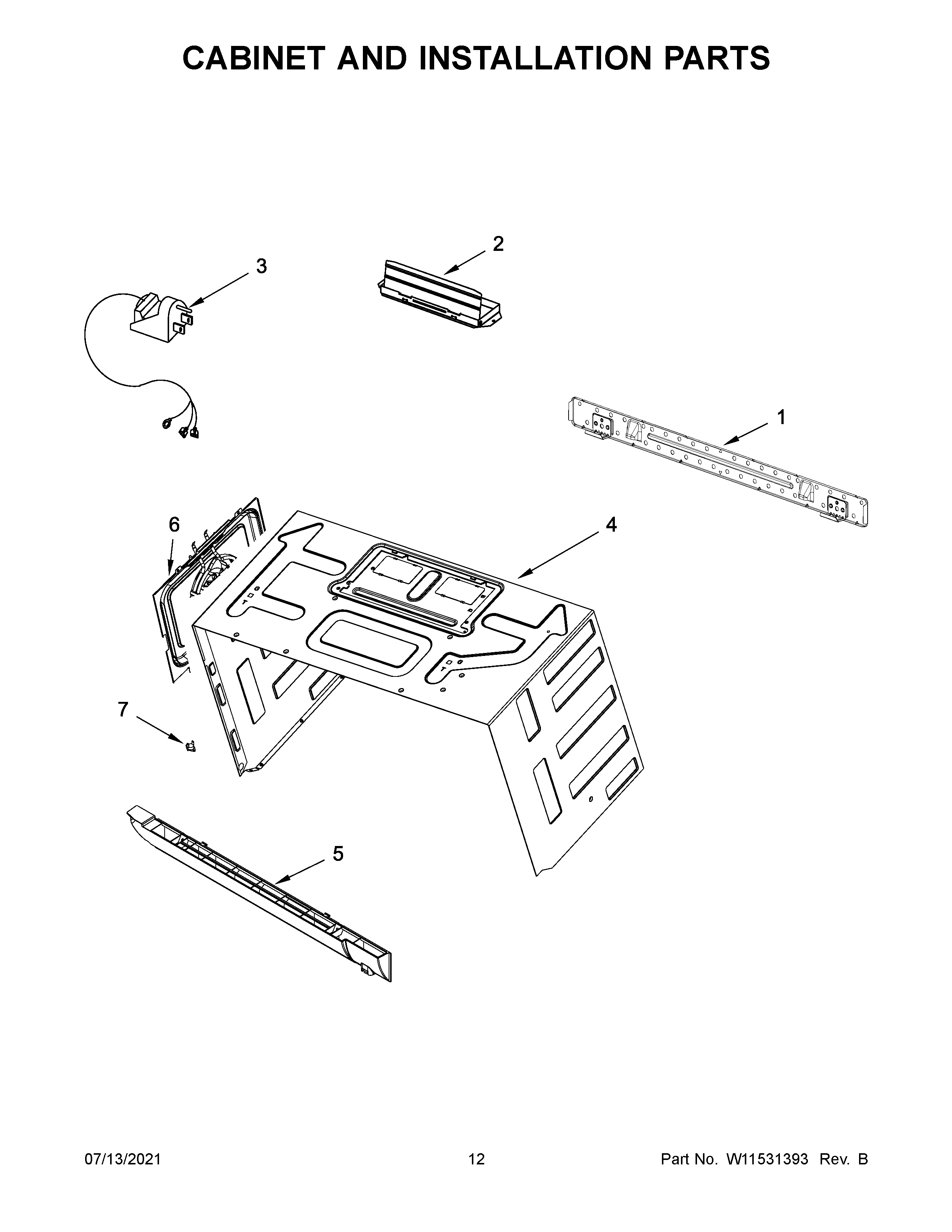

MMV6190FZ4 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W11397754 Whirlpool Wire Harness
NI	W11302285 Whirlpool Microwave Wire Harness
NI	W10571453 Whirlpool Microwave Plate
NI	INSULATION, BOTTOM
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	W10821385 Whirlpool Hardware Kit
NI	W10571451 Whirlpool Plate
NI	W10571450 Whirlpool Plate
NI	MISCELLANEOUS PARTS, HARNESS, CONTROL
NI	W10190018 Whirlpool Microwave Template
NI	W10539840 Whirlpool Microwave Wire Harness
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W11662678 Whirlpool Cabinet Wrapper
5	W10701697 Whirlpool Vent Grille
6	W10665531 Whirlpool Microwave Chamber
7	W11268275 Whirlpool Microwave Thermostat
