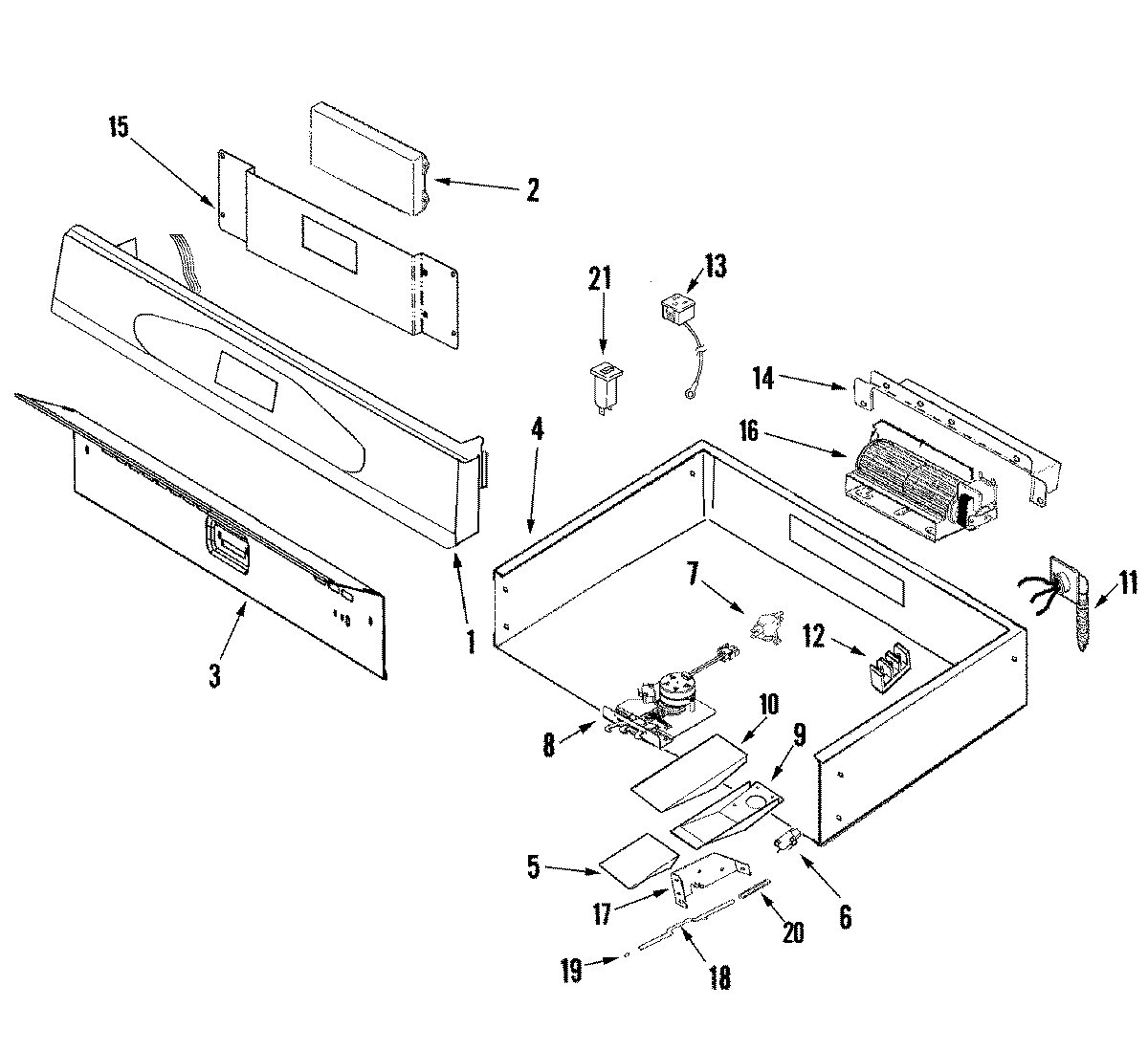

MMW5530DAB 02 – CONTROL PANEL AND INTERNAL CONTROLS

MMW5530DAB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Written by

in

MMW5530DAB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
15765M432-60 Whirlpool Control Panel
2W10757354 Whirlpool Electronic Control Board + Core
2MAY 74008268
3MAY 74008261
4MAY 74008262
5MAY 71001843
6MAY 74008264
6WP74008263 Whirlpool Door Switch
774008265 Whirlpool Oven High Limit Thermostat
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
9MAY 74008294
10MAY 71001847
11MAY 74009005
12MAY 7417P017-60
12KIT, HARDWARE ADAPTER
12WP7103P027-60 Whirlpool Nut
12WPW10245259 Whirlpool Terminal Block
13MAY 701704
14MAY 74008330
14WP90767 Whirlpool Screw
15MAY 74008299
16MAY 74009598
16MAY 74009597
16MAY 74009596
16NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
21WP71002286 Whirlpool Circuit Breaker
