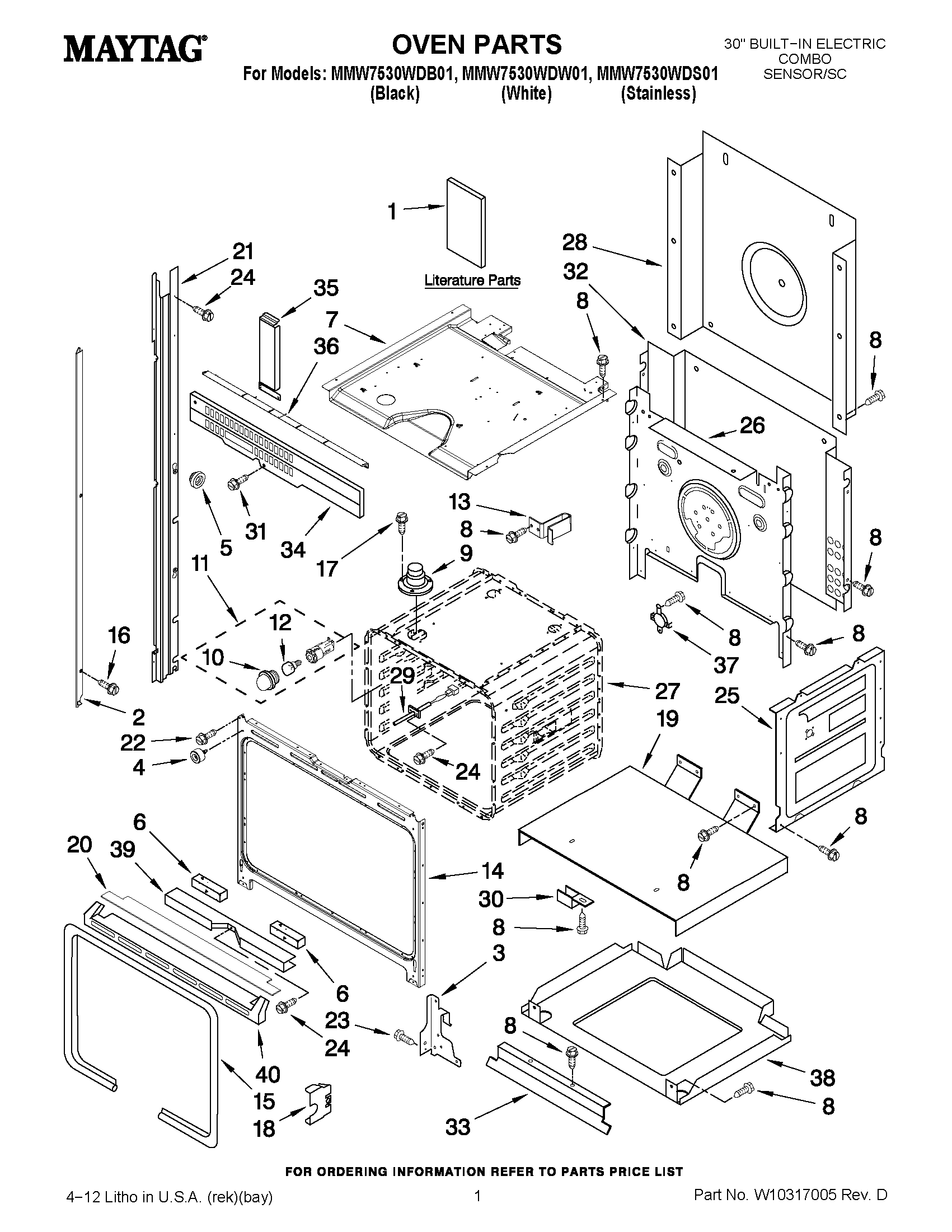

MMW7530WDB01 01 – OVEN PARTSadmin2025-04-26T12:19:41+00:00MMW7530WDB01 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY 4449316 |
| NI | MAY 4450365 |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10276987 |
| 1 | MAY W10192051 |
| 1 | INSTALL- INSTR BOTTOM TRIM |
| 1 | MAY W10276988 |
| 1 | MAY 8304173 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | INSTR, INSTALLER |
| 2 | MAY W10274590 |
| 2 | TRIM, SIDE RIGHT (BLACK) |
| 2 | TRIM, SIDE LEFT (BLACK) |
| 2 | MAY W10274589 |
| 2 | TRIM, SIDE RIGHT (WHITE) |
| 2 | TRIM, SIDE LEFT (WHITE) |
| 3 | MAY 4455606 |
| 3 | MAY 4455605 |
| 4 | MAY 4448520 |
| 4 | ASSEMBLY, BUMPER |
| 5 | Grommet, Mounting Rail |
| 6 | MAY 4452490 |
| 7 | TOP, CHASSIS |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 4452158 |
| 10 | MAY W10067870 |
| 11 | ASSEMBLY, OVEN LIGHT |
| 12 | MAY 4452166 |
| 13 | MAY 8300791 |
| 14 | MAY W10115831 |
| 15 | MAY 4455382 |
| 16 | Screw |
| 17 | Screw |
| 18 | BRACKET, MOUNTING BOTTOM VENT TRIM |
| 19 | MAY 4451478 |
| 20 | MAY W10110697 |
| 21 | RAIL, SIDE (LEFT) |
| 21 | RAIL, SIDE (RIGHT) |
| 22 | MAY 4449040 |
| 23 | MAY 4449743 |
| 24 | MAY 4449154 |
| 25 | Side, Chassis |
| 26 | MAY W10161110 |
| 27 | LINER (NOT A SERVICEABLE PART) |
| 28 | MAY 4451747 |
| 29 | MAY W10131825 |
| 30 | SUPPORT, BRACKET |
| 31 | MAY 4450038 |
| 32 | MAY 4451756 |
| 33 | DEFLECTOR, VENT |
| 34 | MAY 8302592 |
| 35 | EXT-FILLER |
| 36 | MAY 8303502 |
| 37 | THERMOSTAT |
| 38 | MAY 9759713 |
| 39 | MAY 4448933 |
| 40 | TRIM, BOTTOM VENT (WHITE) |
| 40 | TRIM, BOTTOM VENT (BLACK) |
| 40 | TRIM, BOTTOM VENT (STAINLESS) |
