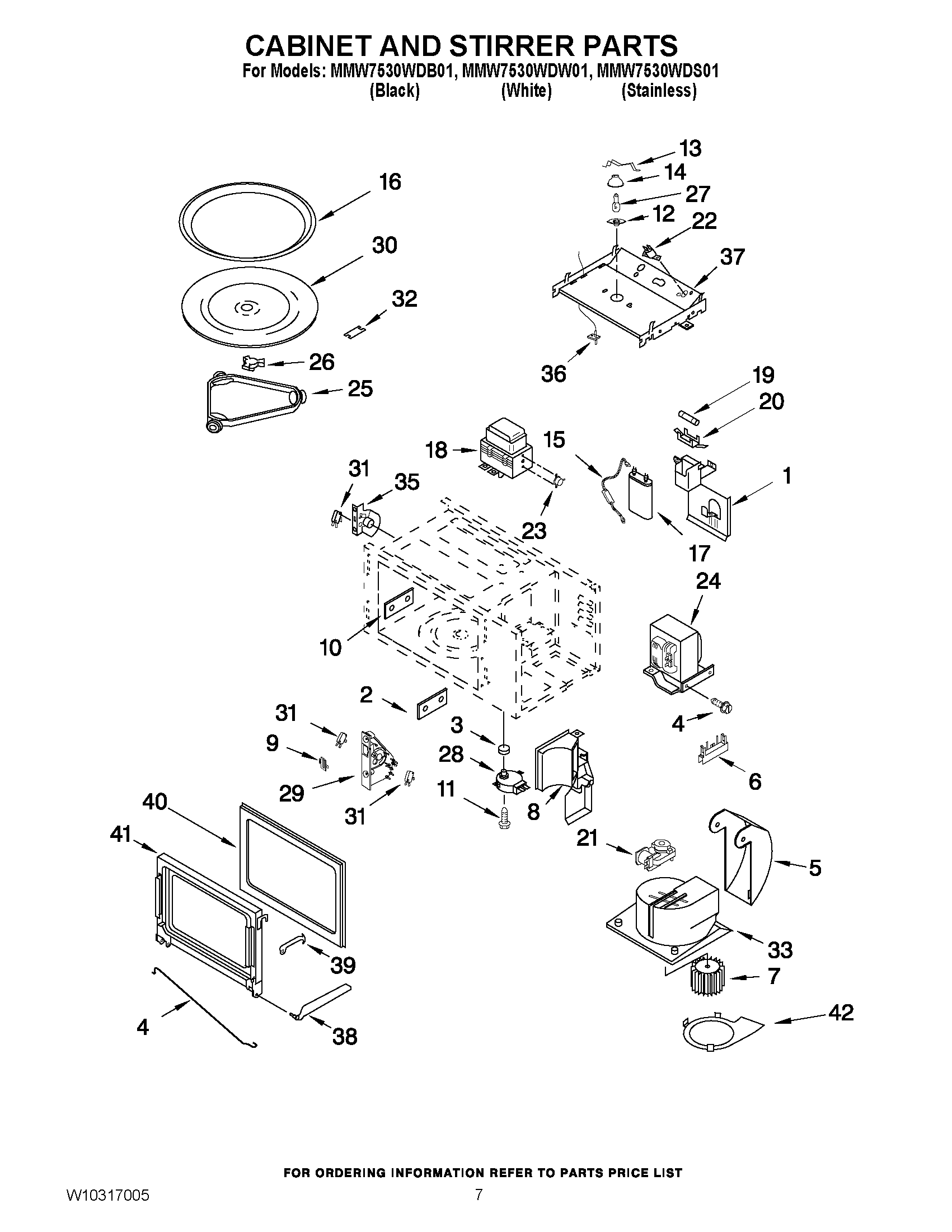

MMW7530WDS01 06 – CABINET AND STIRRER PARTS
Written by
in
MMW7530WDS01 06 – CABINET AND STIRRER PARTS
Products
Position
Product
NI
INSULATION – MWO CONV., TOP
NI
INSULATION – MWO CONV., GRILL
1
MAY 4375299
2
MAY 4375338
3
MAY 4375037
4
MAY 4375038
4
SPRING, TORSION
5
MAY 4375450
6
MAY 4375316
7
MAY 4375322
8
MAY 4375317
9
MAY 4375415
10
MAY 4375248
11
MAY 4375035
12
MAY 4375318
13
SPRING, LAMP
14
MAY 4375320
15
RECTIFIER
16
CRISP PLATE
17
MAY W10250576
18
MAY 4375072
19
MAY 4375321
20
BLOCK, FUSE
21
MAY 8186527
22
MAY W10250580
23
MAY 8205652
24
MAY 4375286
25
MAY 4375442
26
SHAFT, TURNTABLE
27
MAY 4375348
28
MAY 4375347
29
MAY 4375412
29
MAY 4375413
30
MAY 4455915
31
MAY 4375346
33
MAY 4375333
35
SWITCH HOLDER (RIGHT)
35
SWITCH HOLDER (LEFT)
36
MAY 4375422
37
ISOLATION PLATE
38
MAY 4375323
38
MAY 4375324
39
MAY 4375331
40
FRAME, INNER
41
MAY 4375339
42
MAY 4375334
←
