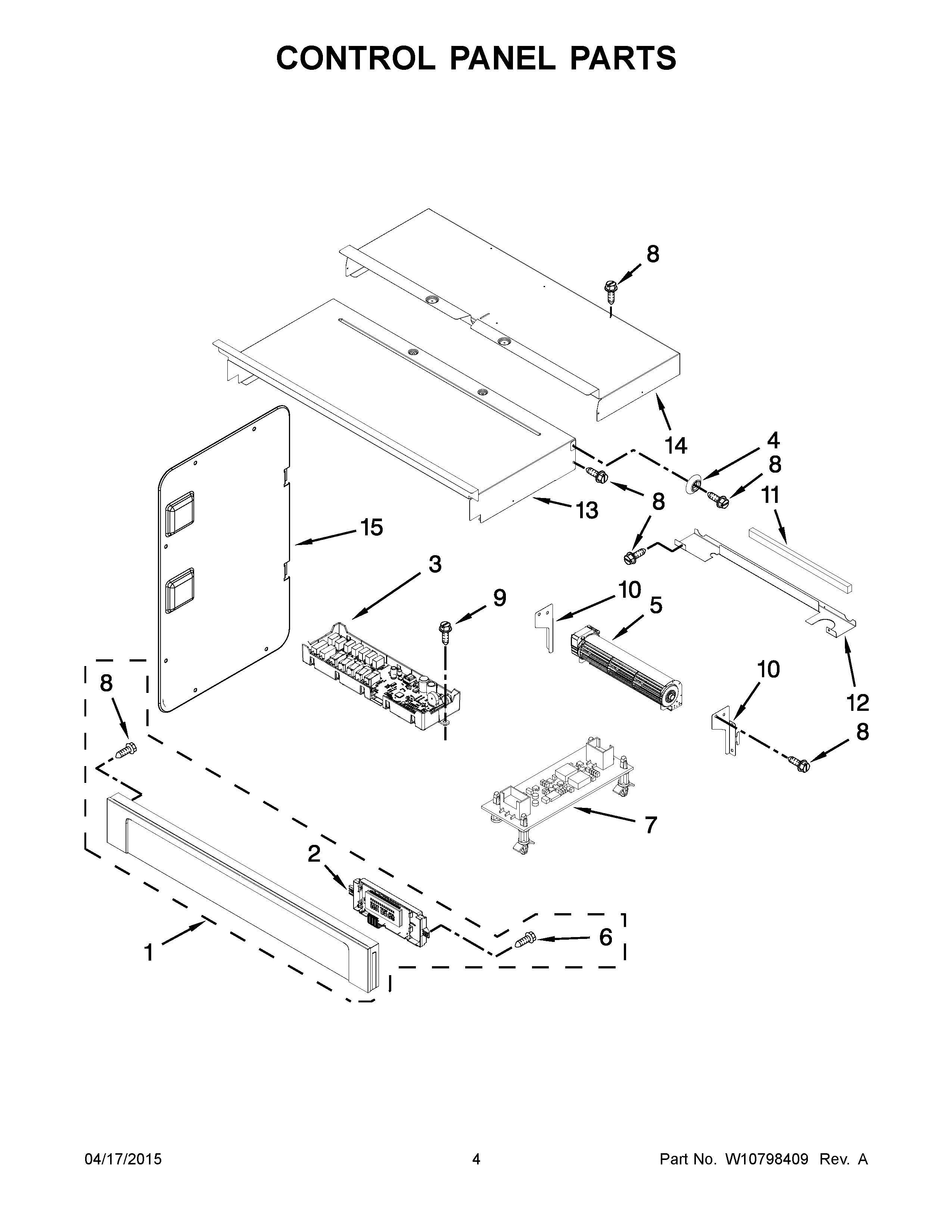

MMW7730DE01 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	MAY W10786421
1	MAY W10786420
2	MAY W10532438
3	MAY W10757005
4	SPACER, LATERAL
5	MAY W10661038
6	MAY 7101P403-60
7	BOARD, WIDE INTERFACE
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	MAY W10283078
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
