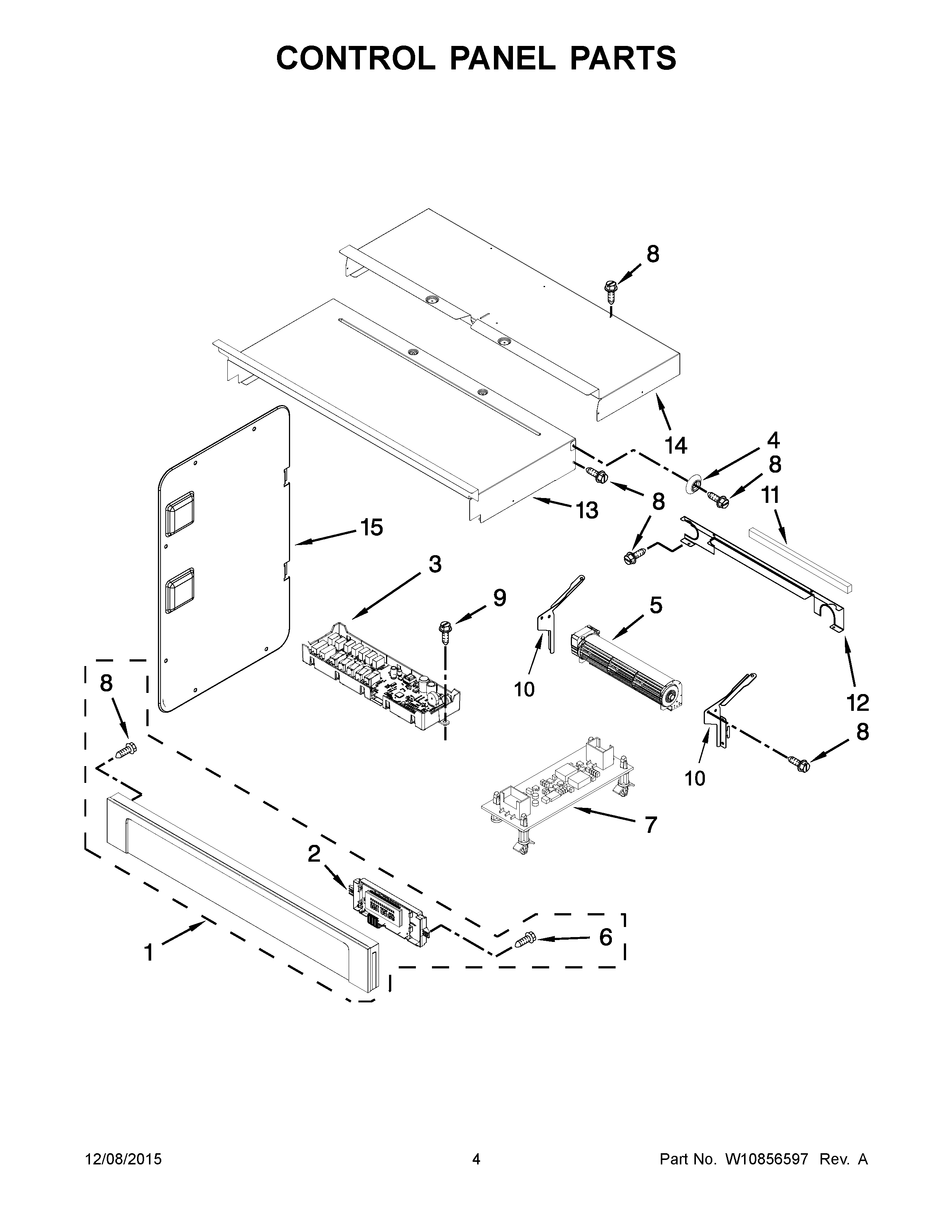

MMW7730DS02 03 – CONTROL PANEL PARTS

MMW7730DS02 03 – CONTROL PANEL PARTS

Written by

in

MMW7730DS02 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	MAY W10812374
1	MAY W10812375
2	ASSEMBLY, DISPLAY
3	MAY W10759189
4	SPACER, LATERAL
5	MAY W10661038
6	MAY 7101P403-60
7	BOARD, WIDE INTERFACE
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	MAY W10618126
13	CHASSIS, COVER TOP FRONT 30"
14	CHASSIS, COVER TOP BACK 30"
15	CHASSIS, COMBO SIDE
