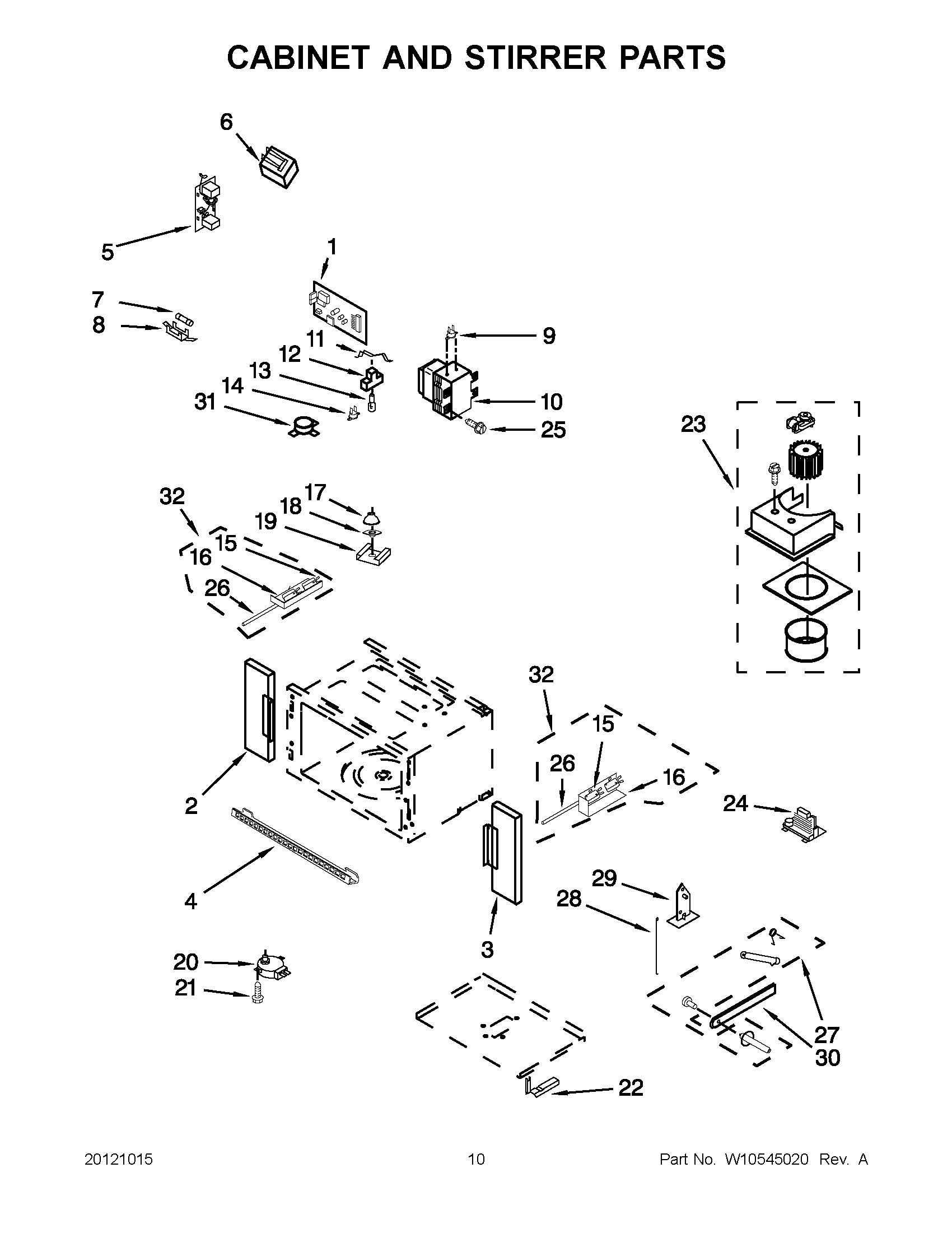

MMW9730AS01 05 – CABINET AND STIRRER PARTS

MMW9730AS01 05 – CABINET AND STIRRER PARTS

Written by

in

MMW9730AS01 05 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10486188
2	TRIM, SIDE LEFT
3	TRIM, SIDE RIGHT
4	VENT, TOP
5	FILTER, NOISE
6	TRANSFORMER
7	MAY 4375321
8	BLOCK, FUSE
9	MAY W10287986
10	MAY W10120113
11	MAY W10475855
12	HOUSING, LAMP
13	MAY W10287972
14	MAY W10389447
15	SWITCH
16	HOLDER, SWITCH
17	MAY 4375320
18	MAY 4375318
19	CLIP, SPRING
20	MOTOR, CONVECTION
21	MAY 4375202
22	MAY W10120478
23	MAY W10330572
24	MAY W10120229
25	MAY W10130890
26	ROD, RELEASE
27	ASSEMBLY, SLIDING ARM
28	SPRING
29	MAY 8205686
30	ARM
31	MAY W10475857
32	ASSEMBLY, INTERLOCK SWITCH
