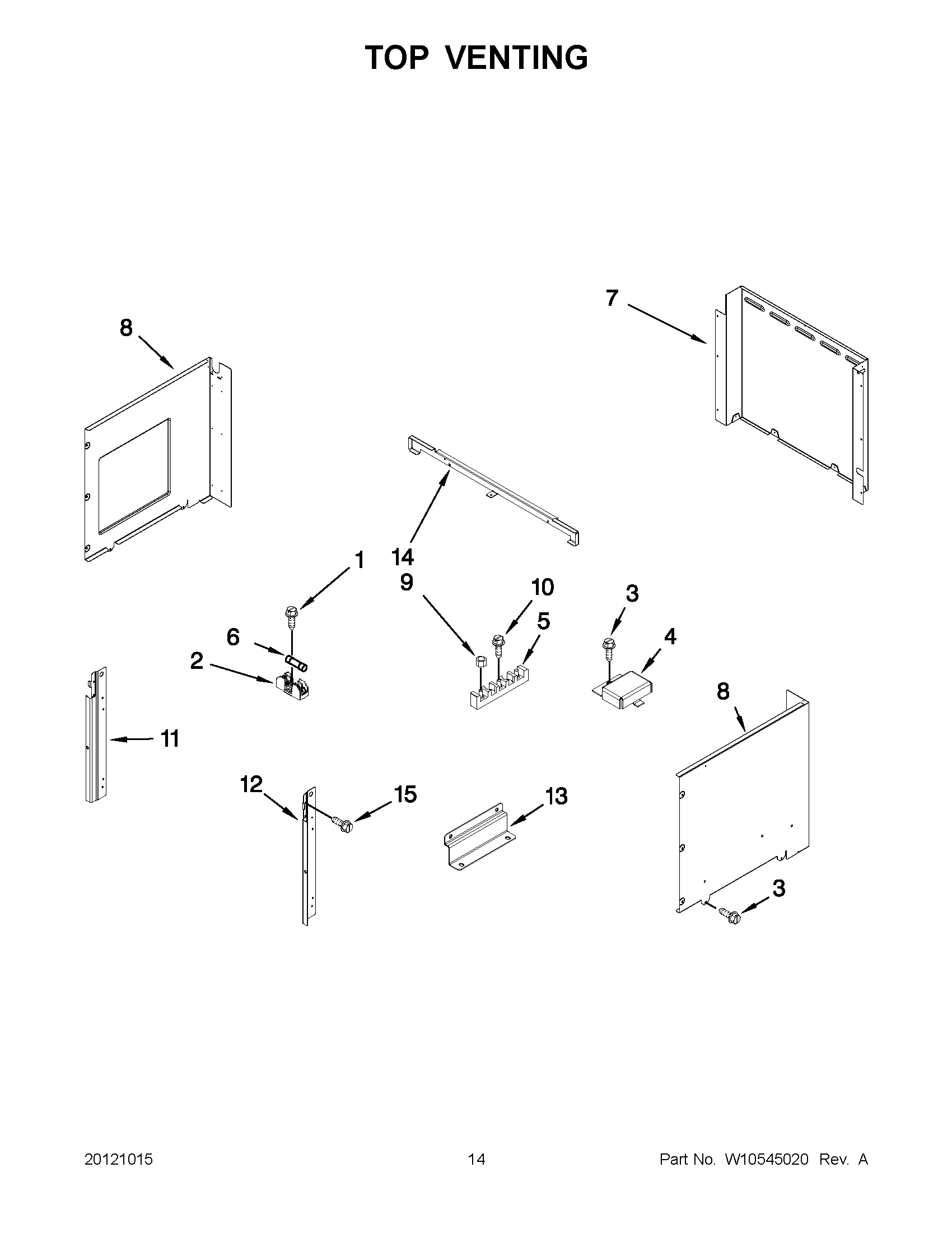

MMW9730AS01 07 – TOP VENTING

Written by

Products

Position	Product
1	MAY 4449154
2	WIRING HARNESS PARTS, HOLDER, FUSE
3	MAY 7101P426- 60
4	MAY 8285593
5	MAY 7401P038-60
6	WIRING HARNESS PARTS, FUSE, TIME DELAY
7	MAY W10283000
8	CHASSIS, COMBO SIDE (LEFT)
8	CHASSIS, COMBO SIDE (RIGHT)
9	WP7103P027-60 Whirlpool Nut
10	MAY 3400080
11	RAIL, SIDE (LEFT)
12	RAIL, SIDE (RIGHT)
13	SIDE, BRACKET
14	SUPPORT, CROSSBAR
15	Screw
