MMW9730AW00 01 – OVEN PARTS – Aparts

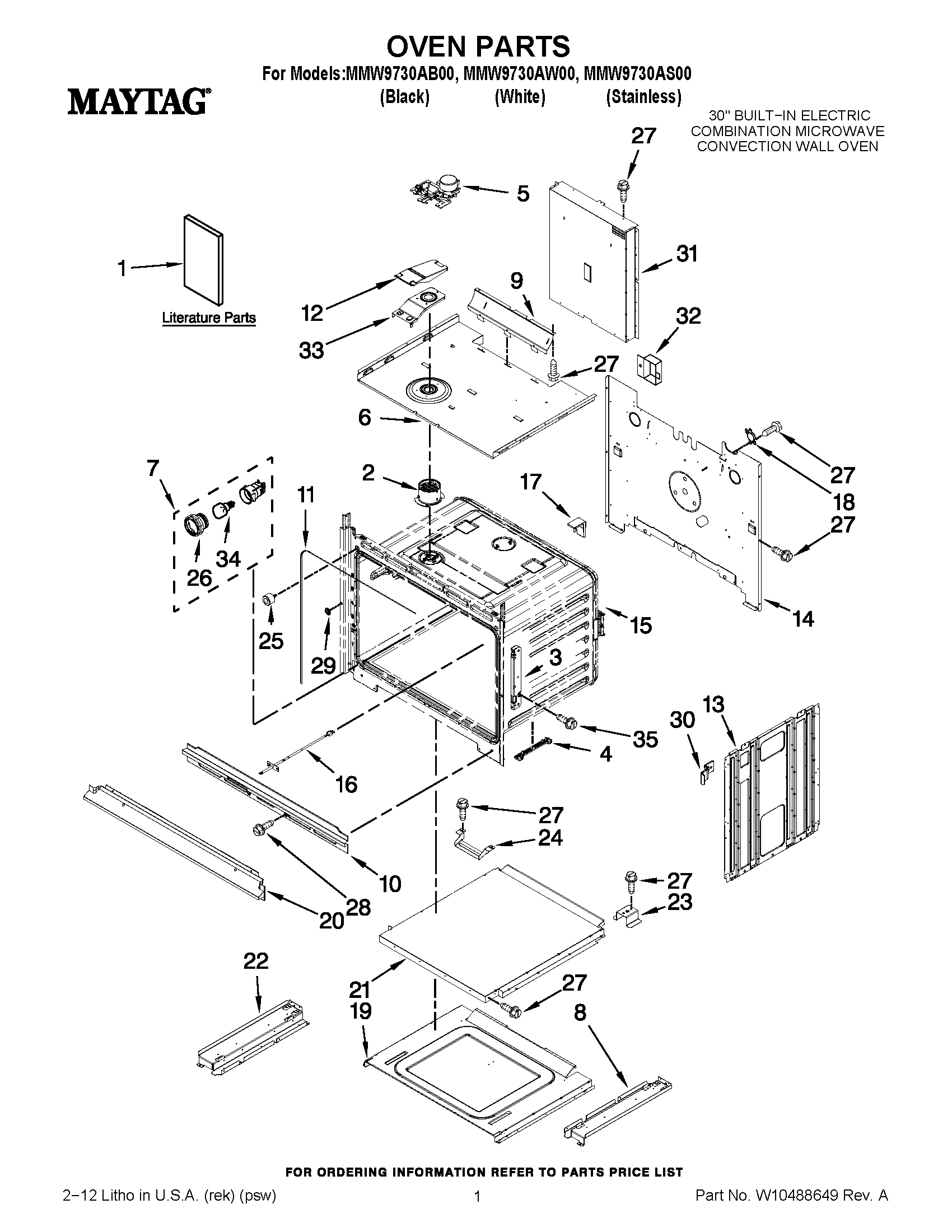

MMW9730AW00 01 – OVEN PARTS

Products

Position	Product
NI	MAY W10282942
NI	MAY W10282944
1	MAY W10354190
1	USE & CARE GUIDE (TECH SHEET)
1	MAY W10354191
1	MAY W10351241
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10282980
7	LIGHT, INDICATOR
8	SUPPORT, BASE (RIGHT)
9	MAY W10351258
10	MAY W10283042
11	MAY W10282960
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
15	LINER (NOT A SERVICEABLE PART)
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282900
20	MAY W10327373
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10347649
31	MAY W10283030
32	MAY 8285593
33	MAY W10282984
34	MAY W10412711
35	MAY W10254050
