MMW9730AW01 01 – OVEN PARTS
Written by
in

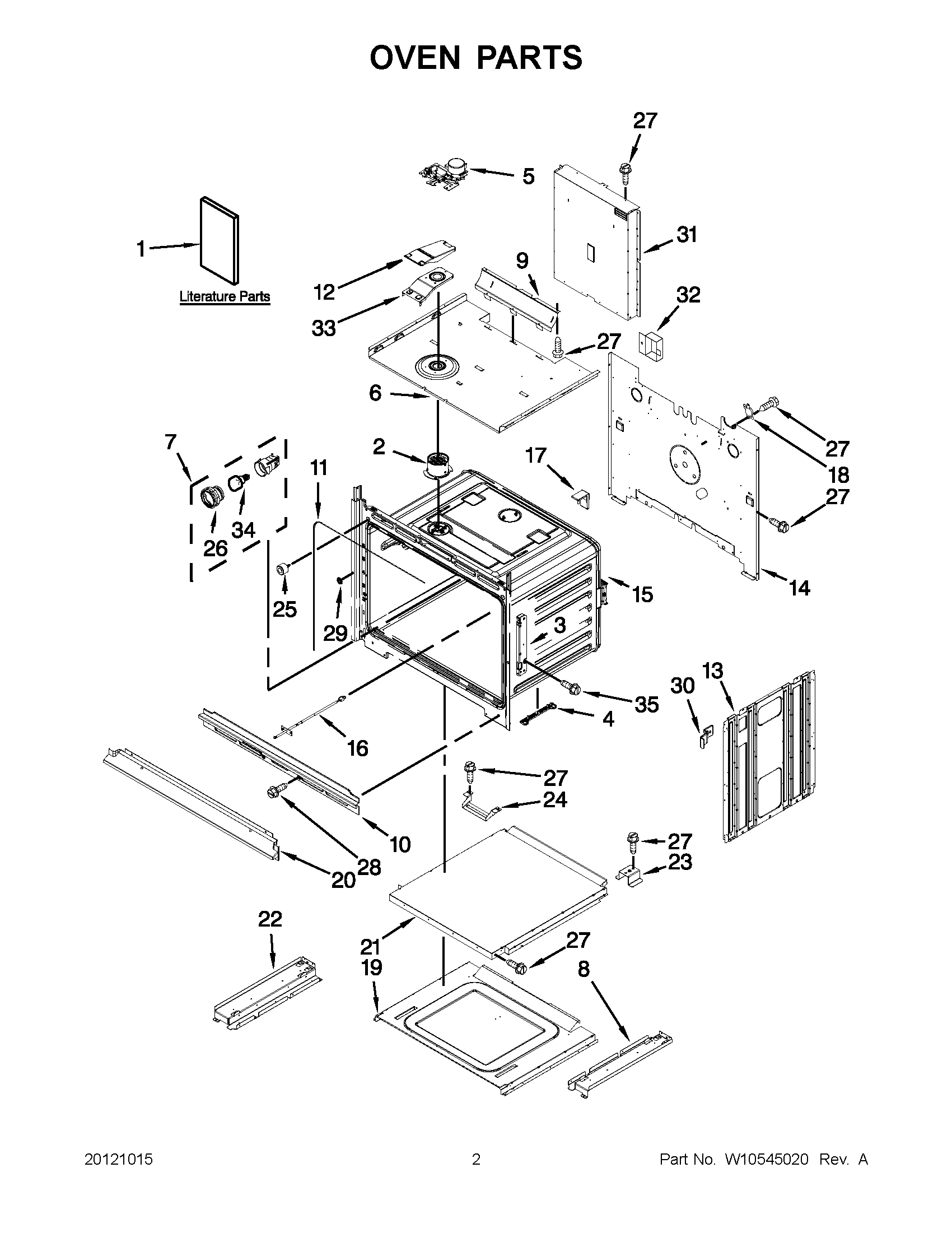

MMW9730AW01 01 – OVEN PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10282944
NI
INSULATION, WRAP
1
USE & CARE GUIDE (TECH SHEET)
1
MAY W10354191
1
MAY W10351241
1
MAY W10354190
2
MAY W10282946
3
MAY W10282975
4
MAY W10318220
5
MAY W10314880
6
MAY W10282980
7
LIGHT, INDICATOR
8
SUPPORT, BASE (RIGHT)
9
MAY W10351258
10
MAY W10283042
11
MAY W10282960
12
MAY W10282985
13
SIDE, CHASSIS (RIGHT)
14
MAY W10282990
16
MAY 7430P043-60
17
MAY W10392683
18
THERMOSTAT
19
MAY W10282900
20
MAY W10351279
20
MAY W10327373
21
CHASSIS, BOTTOM DUCT
22
SUPPORT, BASE (LEFT)
23
MAY W10213759
24
SPACER, CHASSIS BOTTOM DUCT
25
BUMPER & SCREW
26
MAY W10412722
27
MAY 7101P426- 60
28
MAY 4450038
29
MAY W10283016
30
MAY W10347649
31
MAY W10283030
32
MAY 8285593
33
MAY W10282984
34
MAY W10412711
35
MAY W10254050
←
