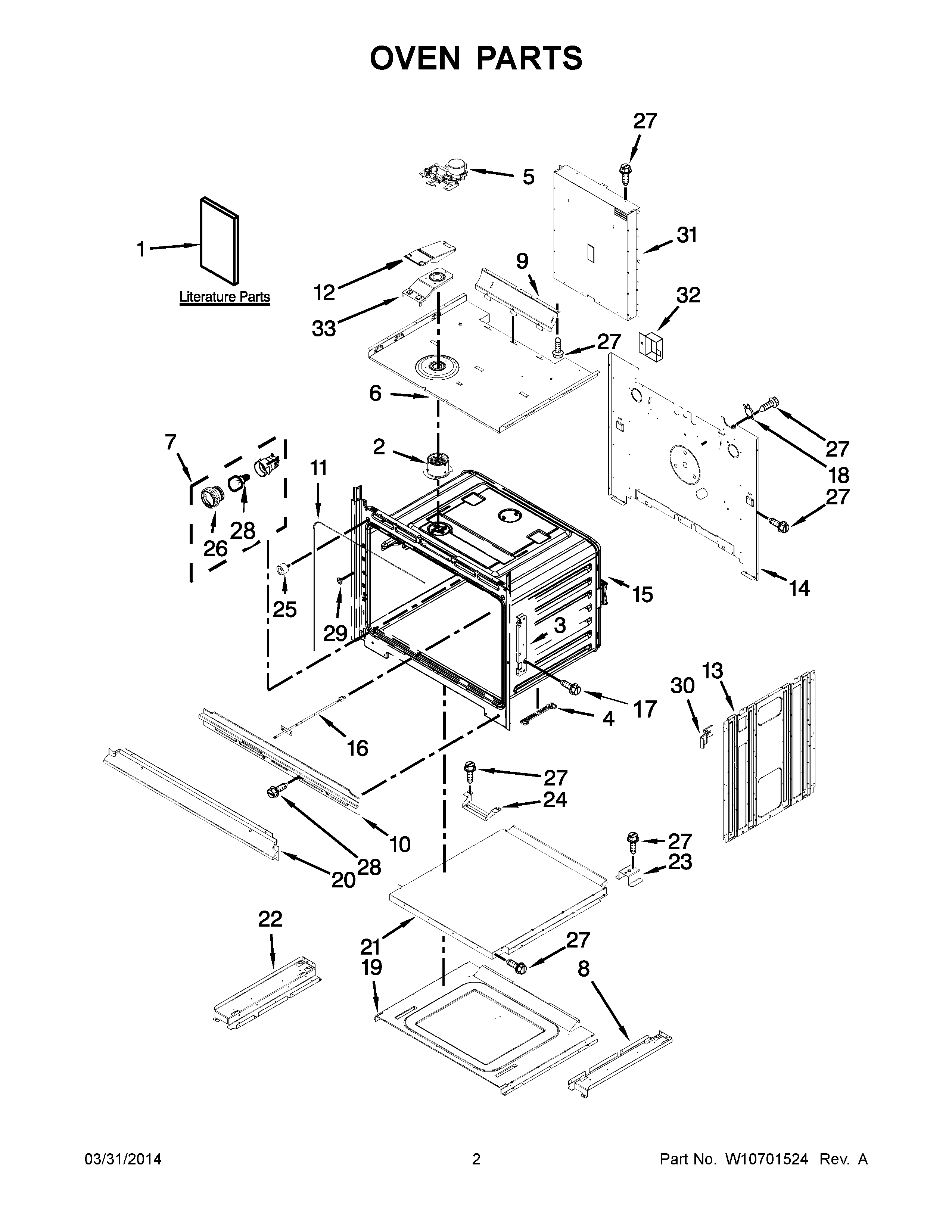

MMW9730AW02 02 – OVEN PARTS

MMW9730AW02 02 – OVEN PARTS

Written by

in

MMW9730AW02 02 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282944
1	USE & CARE GUIDE (TECH SHEET)
1	MAY W10354191
1	MAY W10351241
1	MAY W10354190
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10641573
7	LIGHT, INDICATOR
8	SUPPORT, BASE (RIGHT)
9	MAY W10671661
10	MAY W10283042
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10696134
16	MAY 7430P043-60
17	MAY W10254050
18	THERMOSTAT
19	MAY W10282900
20	MAY W10351279
20	MAY W10327373
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10412711
29	MAY W10283016
30	MAY W10347649
31	MAY W10519703
32	MAY 8285593
33	BASE, VENT EXHAUST
