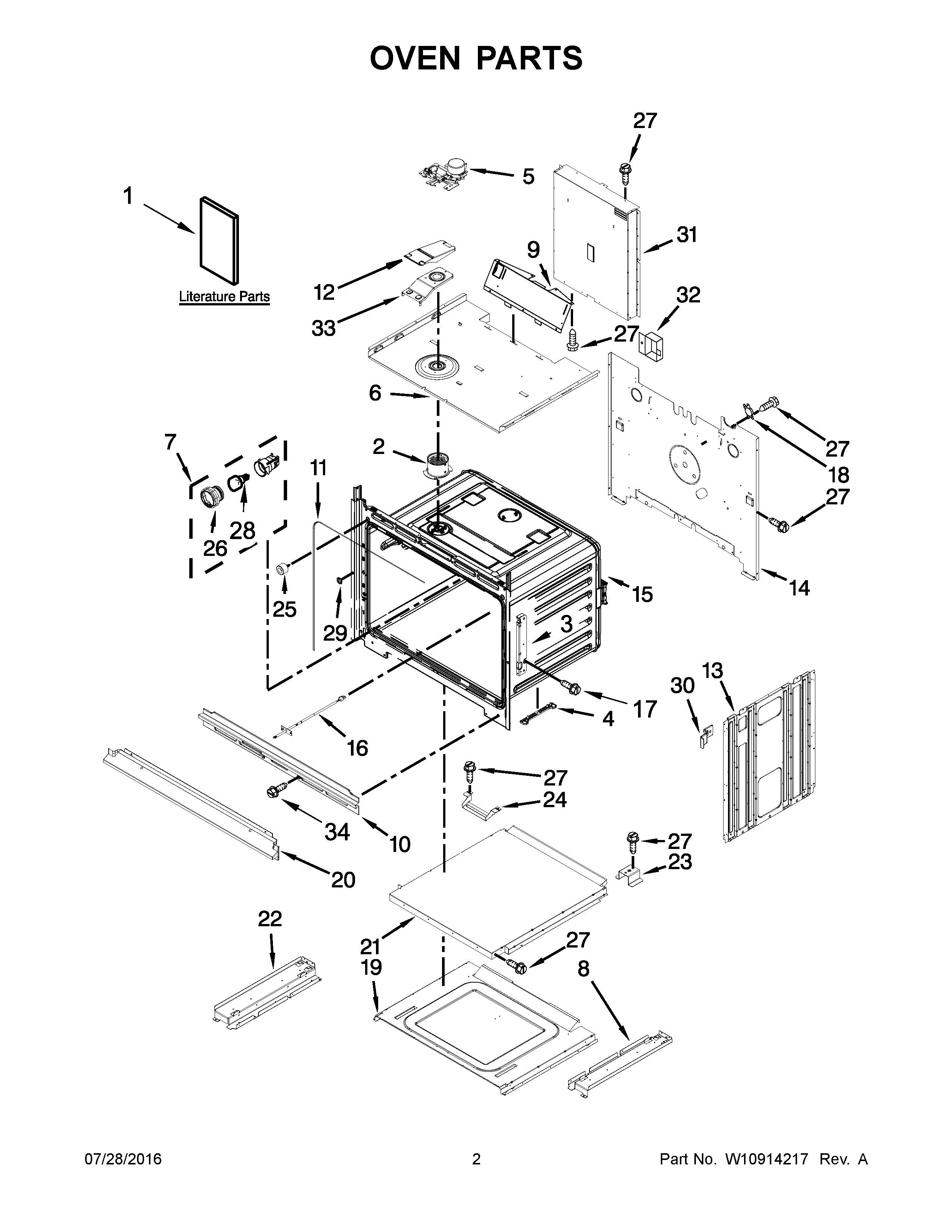

MMW9730FZ01 02 – OVEN PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	MAY W10775068
NI	MAY W10282944
NI	STRAP, GROUND
NI	MAY W10778562
NI	CLAMP, CONDUIT
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRING HARNESS PARTS, CONDUIT, COMBO
NI	MAY 4450800
NI	MAY W10778561
1	MAY W10696163
1B	GUIDE (MICROWAVE), USE & CARE
1C	MAY W10796080
1A	GUIDE (OVEN), USE & CARE
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	MAY W10813743
7	MAY W10734063
8	SUPPORT, BASE (RIGHT)
9	MAY W10641572
10	MAY W10283042
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813703
16	MAY W10622170
17	MAY W10254050
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	SUPPORT, BASE (LEFT)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10412711
29	MAY W10283016
30	MAY W10347649
31	MAY W10519703
32	MAY 8285593
33	BASE, VENT EXHAUST
34	MAY W10607120
