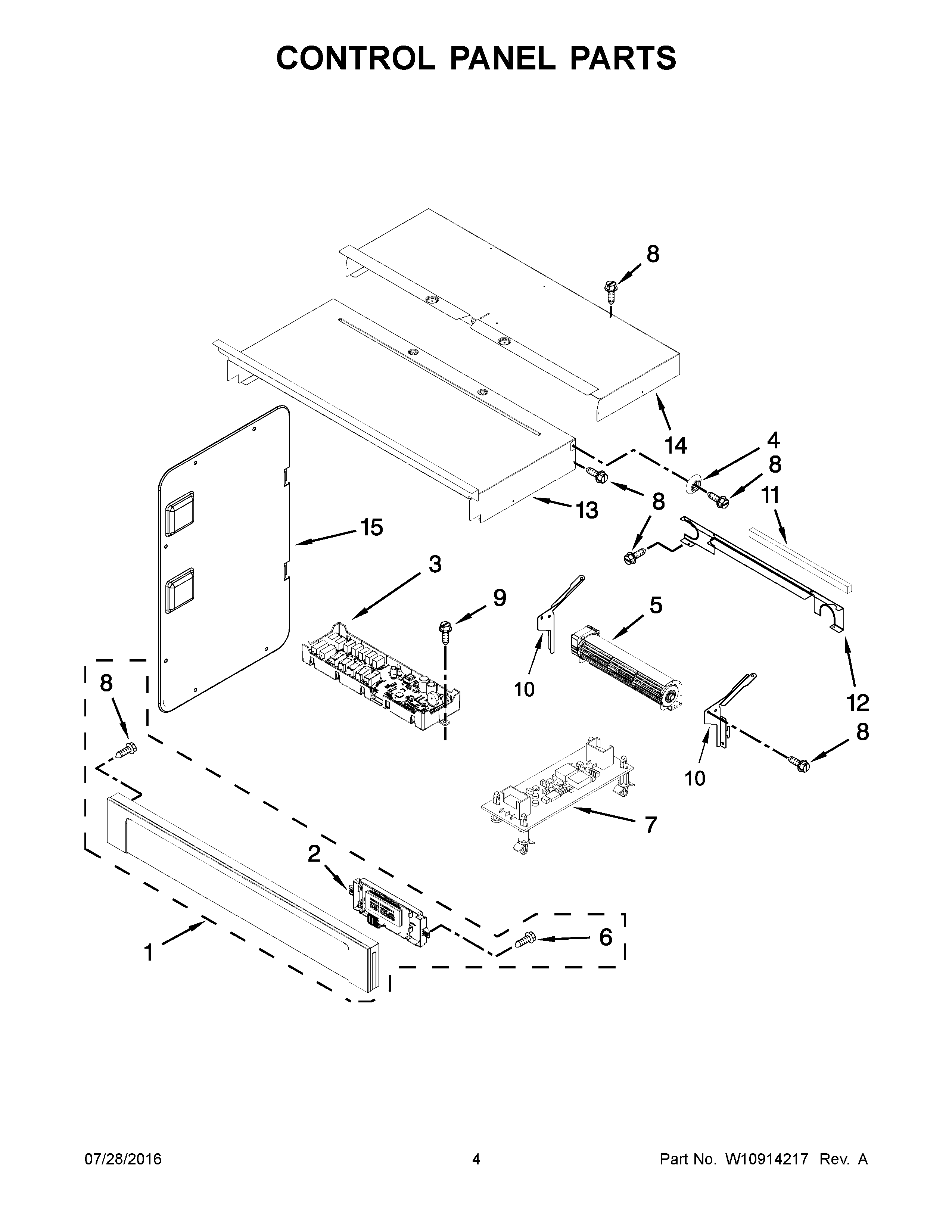

MMW9730FZ01 03 – CONTROL PANEL PARTS

MMW9730FZ01 03 – CONTROL PANEL PARTS

Written by

in

MMW9730FZ01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
2ASSEMBLY, DISPLAY
3MAY W10882112
4SPACER, LATERAL
5MAY W10661038
6MAY 7101P403-60
7BOARD, WIDE INTERFACE
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12MAY W10618126
13CHASSIS, COVER TOP FRONT 30"
14CHASSIS, COVER TOP BACK 30"
15CHASSIS, COMBO SIDE
