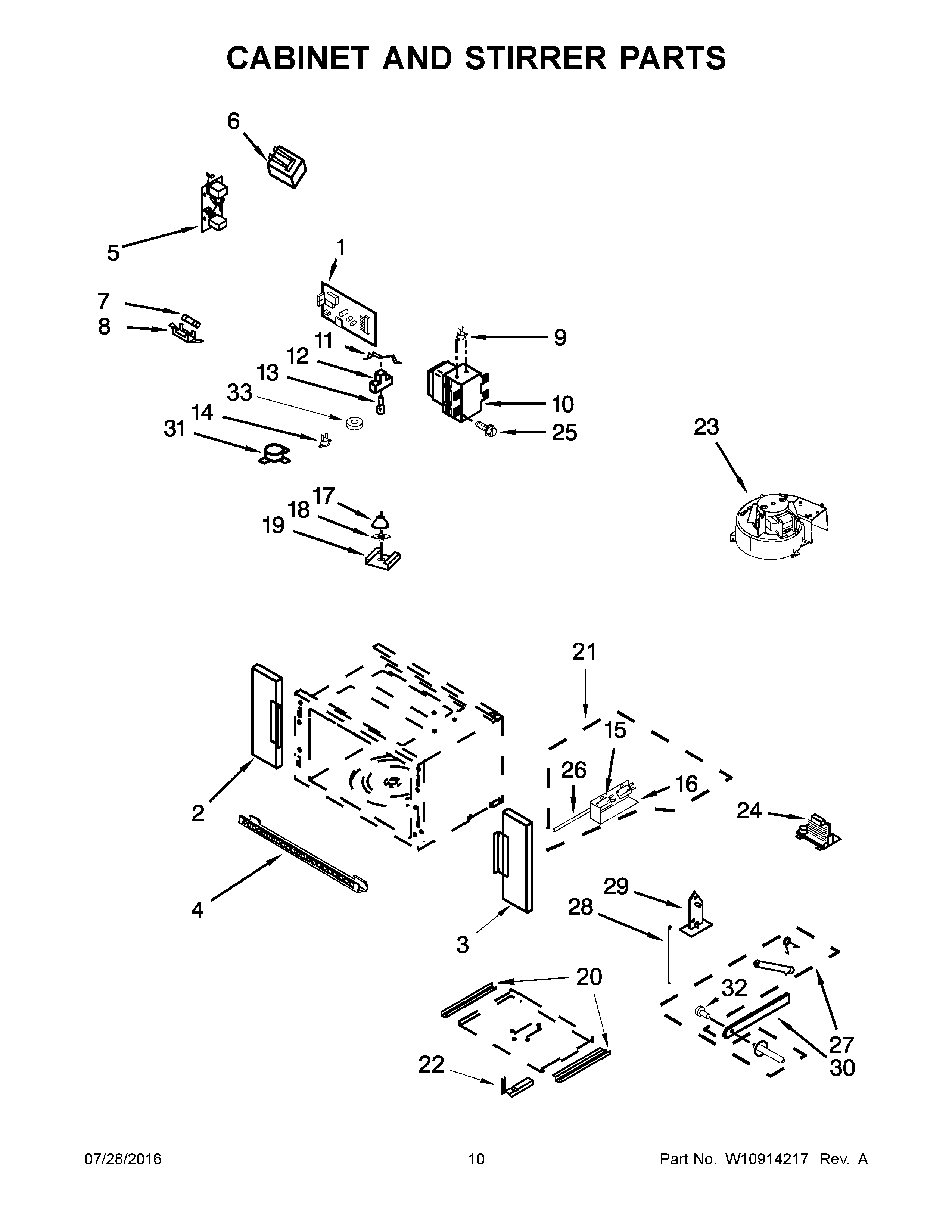

MMW9730FZ01 06 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	MAY W10406103
NI	MAY W10389372
1	MAY W10586836
2	TRIM, SIDE (LEFT)
3	MAY W10367739
4	VENT, TOP MICROWAVE
5	FILTER, NOISE
6	TRANSFORMER, LIGHT (20V)
7	FUSE
8	BLOCK, FUSE
9	THERMOSTAT, MAGNETRON
10	MAY 461967847321
11	SPRING, LAMP
12	HOLDER, LAMP
13	LAMP, HALOGEN
14	MAY W10389447
15	SWITCH
16	HOLDER, SWITCH
17	REFLECTOR
18	LENS, LAMP
19	CLIP, SPRING
20	SUPPORT, BOTTOM
21	MAY W10371814
22	MAY 461968979601
23	MAY 461968969271
24	MAY W10468206
25	SCREW
26	ROD, RELEASE
27	ASSEMBLY, SLIDING ARM
28	SPRING, TORSION
29	SUPPORT
30	ARM, SLIDING
31	SENSOR, HUMIDITY
32	BUSHING
33	SEALING, LAMP
