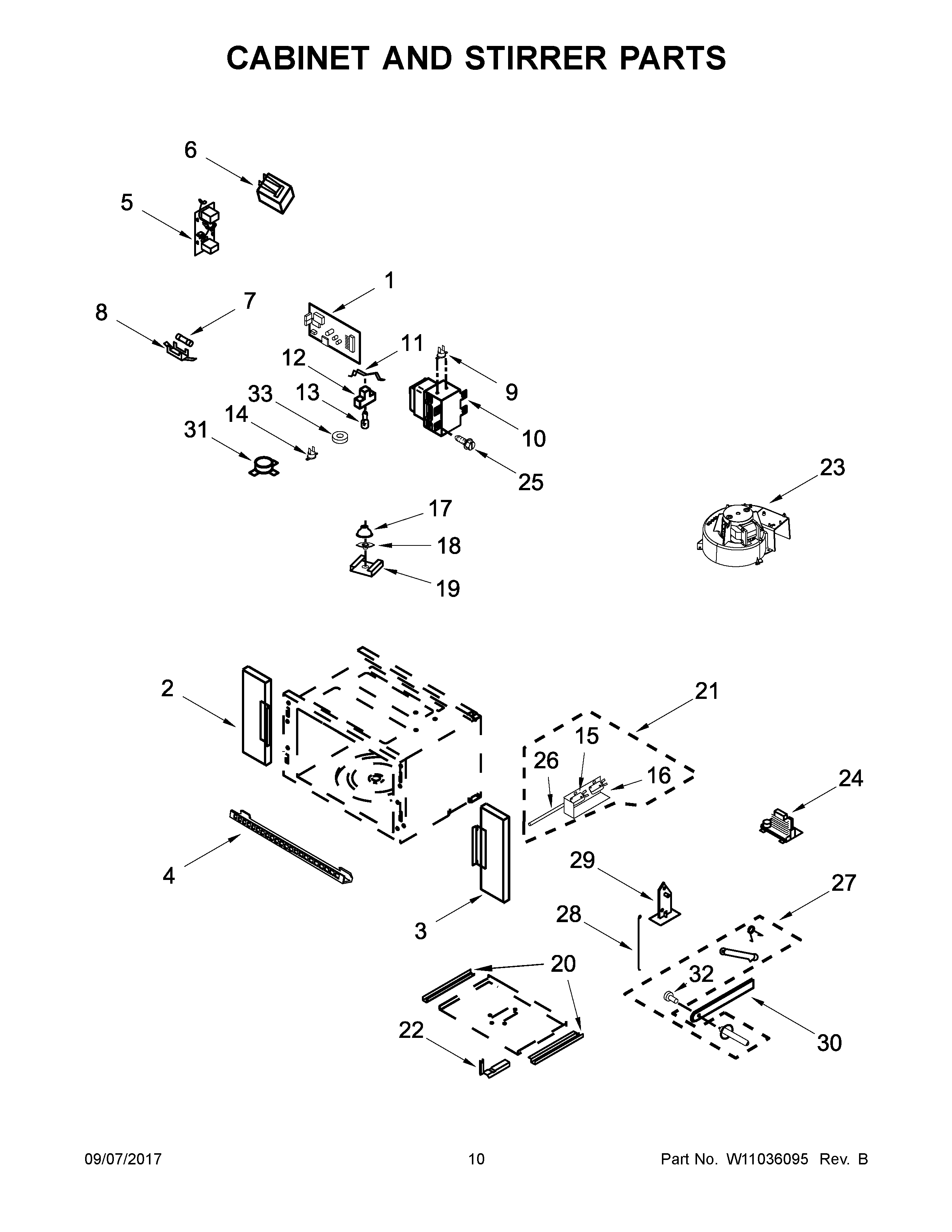

MMW9730FZ02 06 – CABINET AND STIRRER PARTS

MMW9730FZ02 06 – CABINET AND STIRRER PARTS

Written by

in

MMW9730FZ02 06 – CABINET AND STIRRER PARTS

Products

PositionProduct
NIHARNESS, FAN & TURNTABLE
NIHARNESS, INVERTER
NIHARNESS, CABLE TREE ASSEMBLY
1MAY W10586836
2TRIM, SIDE (LEFT)
3TRIM, SIDE (RIGHT)
4VENT, TOP MICROWAVE
5FILTER, NOISE
6TRANSFORMER, LIGHT (20V)
7FUSE
8BLOCK, FUSE
9THERMOSTAT, MAGNETRON
10MAY 461967847321
11SPRING, LAMP
12HOLDER, LAMP
13LAMP, HALOGEN
14MAY W10389447
15SWITCH
16HOLDER, SWITCH
17REFLECTOR
18LENS, LAMP
19CLIP, SPRING
20SUPPORT, BOTTOM
21HARNESS, INTERLOCK
22MAY 461968979601
23MAY 461968969271
24MAY W10468206
25SCREW
26ROD, RELEASE
27ASSEMBLY, SLIDING ARM
28SPRING, TORSION
29SUPPORT
30ARM, SLIDING
31SENSOR, HUMIDITY
32BUSHING
33SEALING, LAMP
