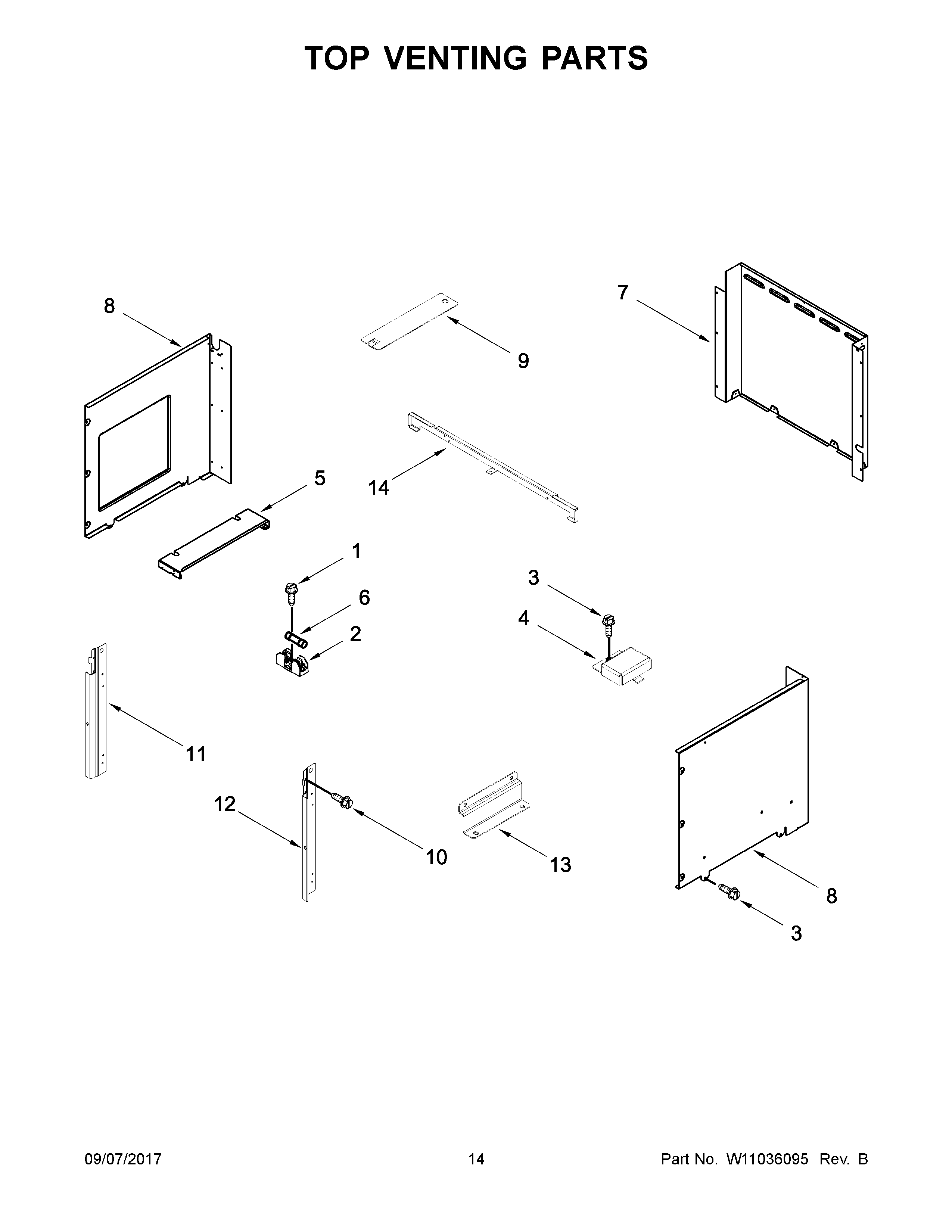

MMW9730FZ02 08 – TOP VENTING PARTS

Written by

Products

Position	Product
1	SCREW (10ABX1.0-ZN)
2	WIRING HARNESS PARTS, HOLDER, FUSE
3	MAY 7101P426- 60
4	MAY 8285593
5	MAY W10356644
6	WIRING HARNESS PARTS, FUSE, TIME DELAY
7	COVER, BACK DUCT
8	CHASSIS, COMBO SIDE (LEFT)
8A	CHASSIS, COMBO SIDE (RIGHT)
9	MAY W10356437
10	Screw
11	RAIL, SIDE (LEFT)
12	RAIL, SIDE (RIGHT)
13	SIDE, BRACKET
14	SUPPORT, CROSSBAR
