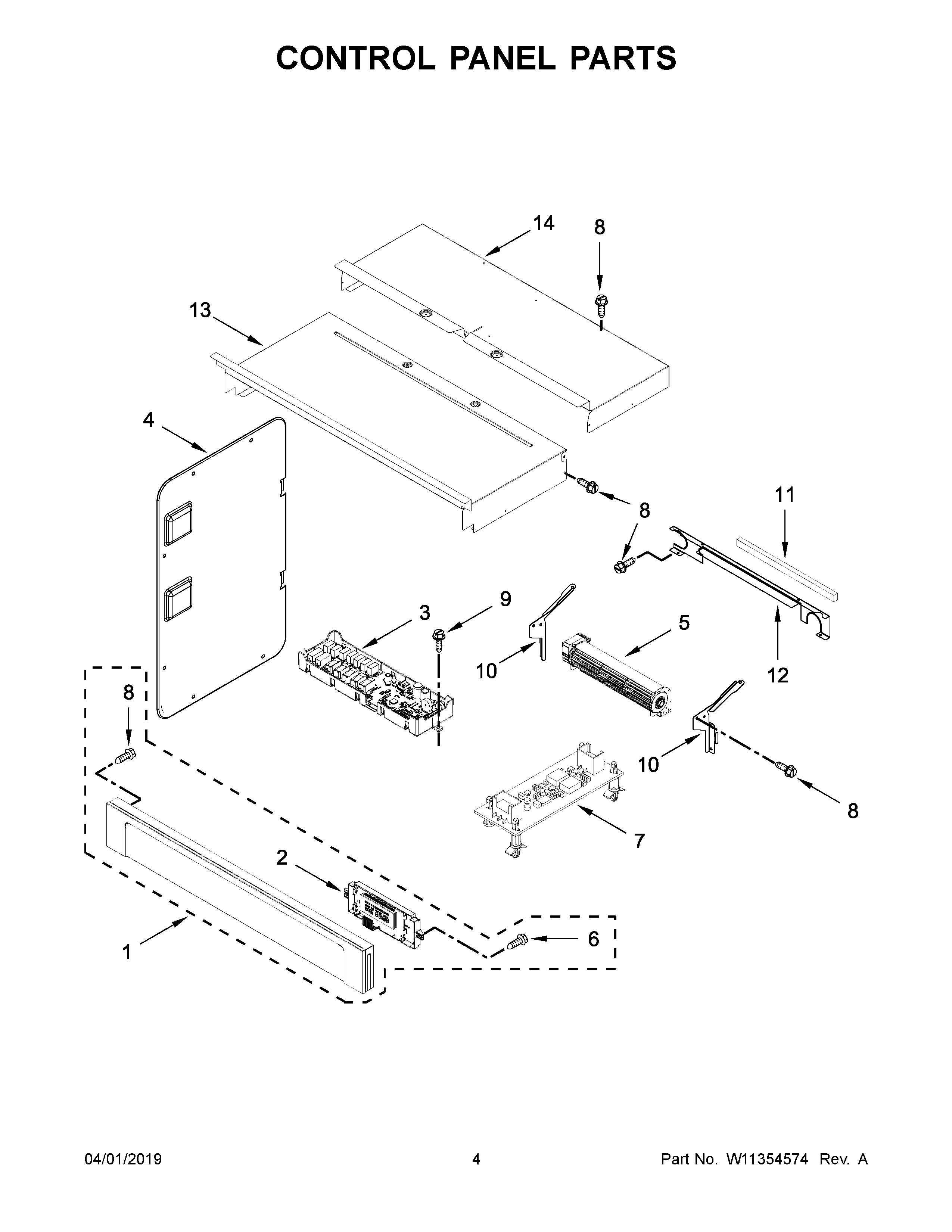

MMW9730FZ04 03 – CONTROL PANEL PARTSadmin2025-04-26T12:20:05+00:00MMW9730FZ04 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS) |
| 2 | ASSEMBLY, DISPLAY |
| 3 | ASSEMBLY (MAXWELL), CONTROL BOARD |
| 4 | CHASSIS, COMBO SIDE |
| 5 | BLOWER |
| 6 | MAY 7101P403-60 |
| 7 | BOARD, WIDE INTERFACE |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10A | BRACKET, BLOWER (RIGHT) |
| 10 | BRACKET, BLOWER (LEFT) |
| 11 | BLOCK, FOAM |
| 12 | MAY W10618126 |
| 13 | CHASSIS, COVER TOP FRONT 30" |
| 14 | CHASSIS, COVER TOP BACK 30" |
