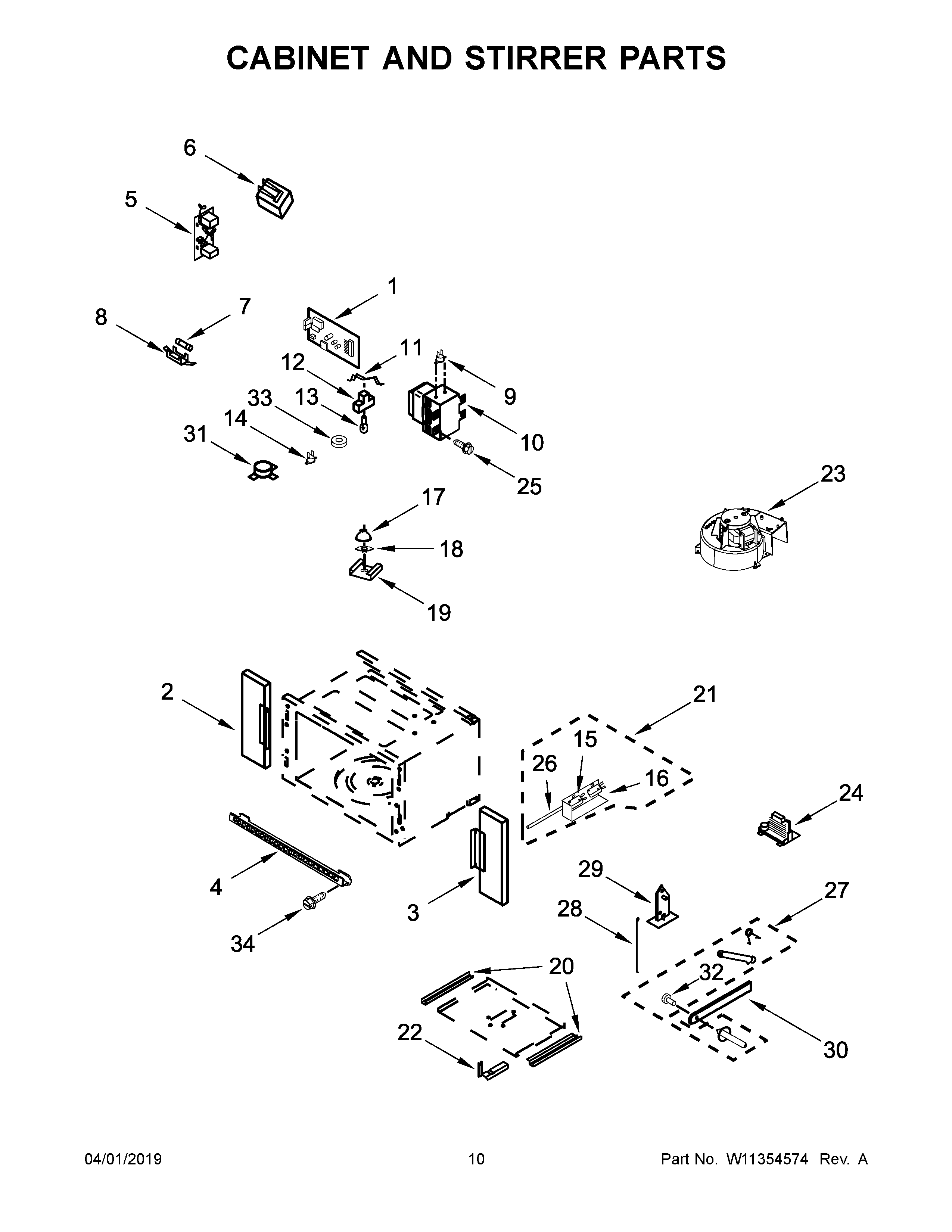

MMW9730FZ04 06 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	HARNESS, FAN & TURNTABLE
NI	HARNESS, INVERTER
NI	HARNESS, CABLE TREE ASSEMBLY
1	MAY W11290000
2	TRIM, SIDE (LEFT)
3	TRIM, SIDE (RIGHT)
4	VENT, TOP MICROWAVE
5	FILTER, NOISE
6	TRANSFORMER, LIGHT (20V)
7	FUSE
8	BLOCK, FUSE
9	THERMOSTAT, MAGNETRON
10	MAY W11226473
11	SPRING, LAMP
12	HOLDER, LAMP
13	LAMP, HALOGEN
14	MAY W10389447
15	SWITCH
16	HOLDER, SWITCH
17	REFLECTOR
18	LENS, LAMP
19	CLIP, SPRING
20	SUPPORT, BOTTOM
21	HARNESS, INTERLOCK
22	MAY 461968979601
23	MAY W11131760
24	MAY W11237240
25	SCREW
26	ROD, RELEASE
27	ASSEMBLY, SLIDING ARM
28	SPRING, TORSION
29	SUPPORT
30	ARM, SLIDING
31	SENSOR, HUMIDITY
32	BUSHING
33	SEALING, LAMP
34	SCREW
