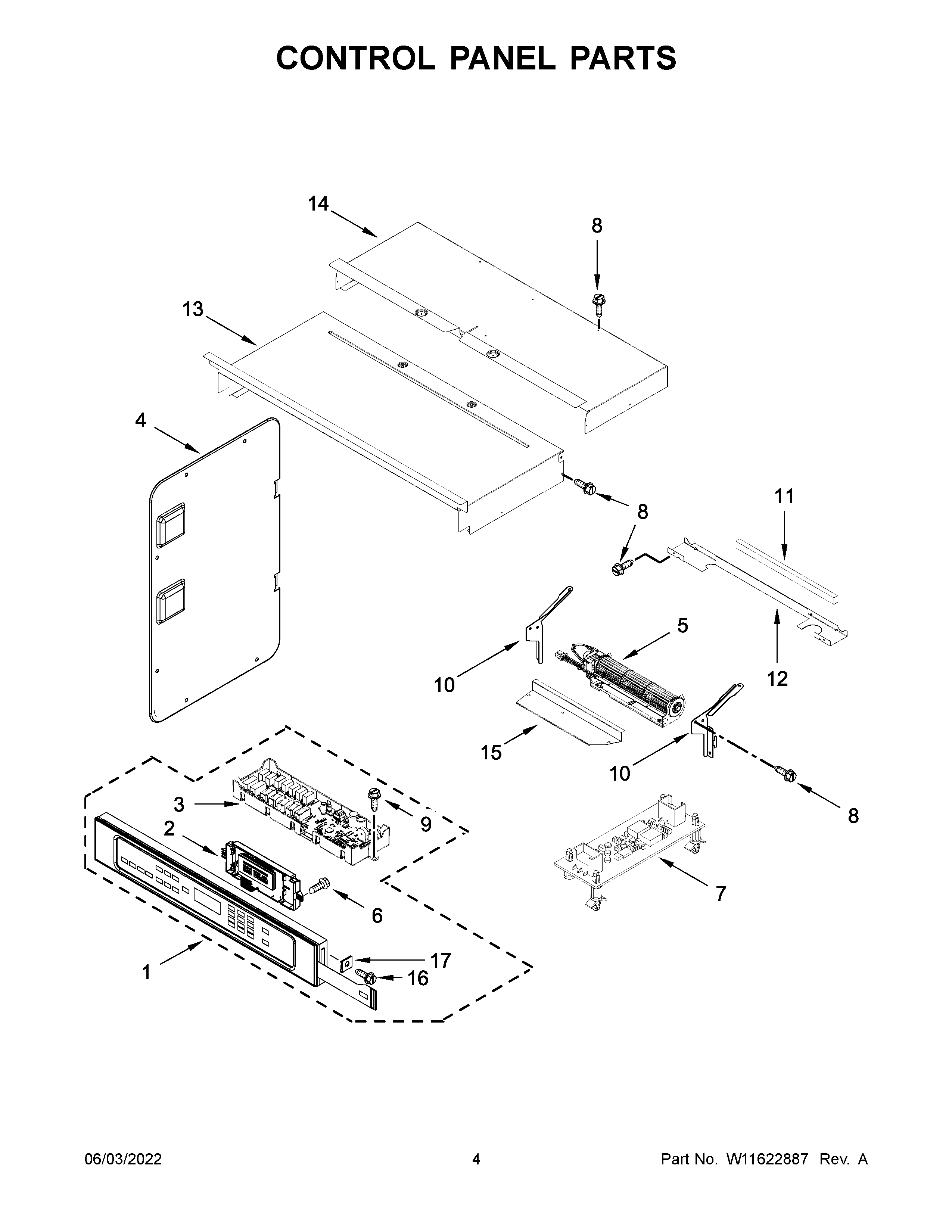

MMW9730FZ20 03 – CONTROL PANEL PARTS

MMW9730FZ20 03 – CONTROL PANEL PARTS

Written by

in

MMW9730FZ20 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11600317 Whirlpool Control Panel
2WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3W11598233-includeCORE Whirlpool W11598233 Refrigerator Electronic Control Board + Core
4W10655467 Whirlpool Side Cover
5BLOWER
6SCREW
7WPW10412514 Whirlpool Electronic Control Board + Core
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12DIVIDER, CHASSIS BACK
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15W10681157 Whirlpool Fan Cover
16SCREW (BLACK)
17WP4450118 Whirlpool Nut
