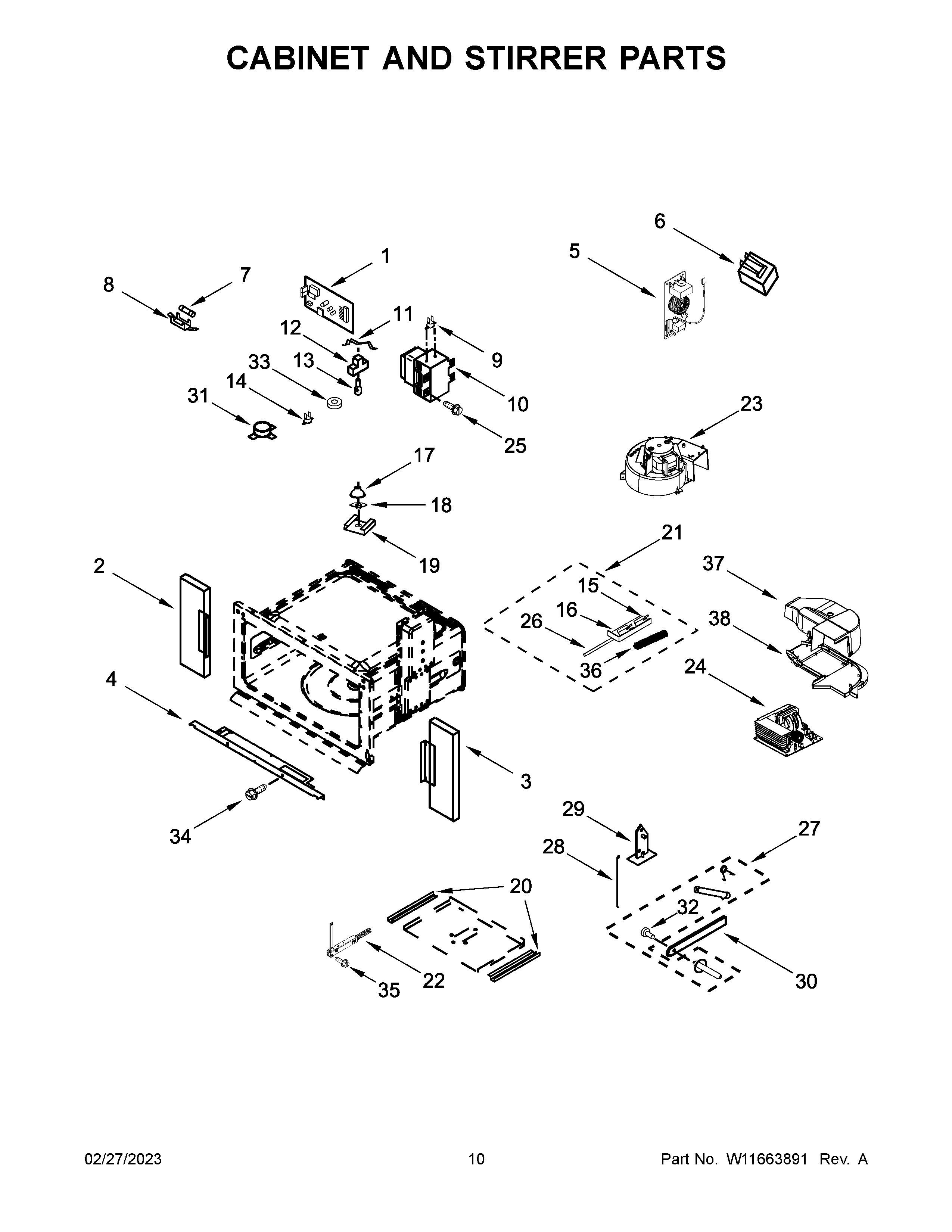

MMW9730FZ22 06 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11539494 Whirlpool Wire Harness
NI	W11578580 Whirlpool Wire Harness
NI	W11546965 Whirlpool Wire Harness
NI	HARNESS, INTERLOCK
NI	HARNESS, INPUT
1	W11325787 Whirlpool Power Board
2	W10486208 Whirlpool Microwave Trim
3	TRIM, SIDE (RIGHT)
4	W11334716 Whirlpool Door Trim
5	W11578573 Whirlpool Filter
6	W11238401 Whirlpool Microwave Transformer
7	W11188752 Whirlpool Microwave Fuse
8	W10245194 Whirlpool Microwave Fuse Block
9	W11233913 Whirlpool Microwave Sensor
10	W11578959 Whirlpool Magnetron
11	W10465869 Whirlpool Microwave Spring
12	WPW10490593 Whirlpool Microwave Lamp Housing
13	W10886919 Whirlpool Light Bulb
14	W11568584 Whirlpool Microwave Thermostat Fix
15	W10211972 Whirlpool Microwave Switch
16	W11214928 Whirlpool Microwave Interlock
17	423107022541 Whirlpool Microwave Reflector
18	W11193483 Whirlpool Microwave Lamp Lens
19	W11440819 Whirlpool Clip
20	8205707 Whirlpool Microwave Support
21	W11033422 Whirlpool Microwave Interlock
22	W11714253 Whirlpool Door Hinge
23	W11344874 Whirlpool Microwave Fan Motor
24	W11578579 Whirlpool Inverter
25	461967825971 Whirlpool Oven Screw
26	WPW10120235 Whirlpool Microwave Relief Rod
28	W11700292 Whirlpool Spring
29	W11684510 Whirlpool Support
30	W11607070 Whirlpool Arm
31	W11699906 Whirlpool Sensor
32	WPW10128850 Whirlpool Microwave Arm
33	W10769147 Whirlpool Microwave Foam Seal
34	461967825321 Whirlpool Microwave Screw
35	W11690594 Whirlpool Screw
36	W11715912 Whirlpool Spring Assembly
37	HOUSING, UPPER INVERTER
38	HOUSING, LOWER INVERTER
