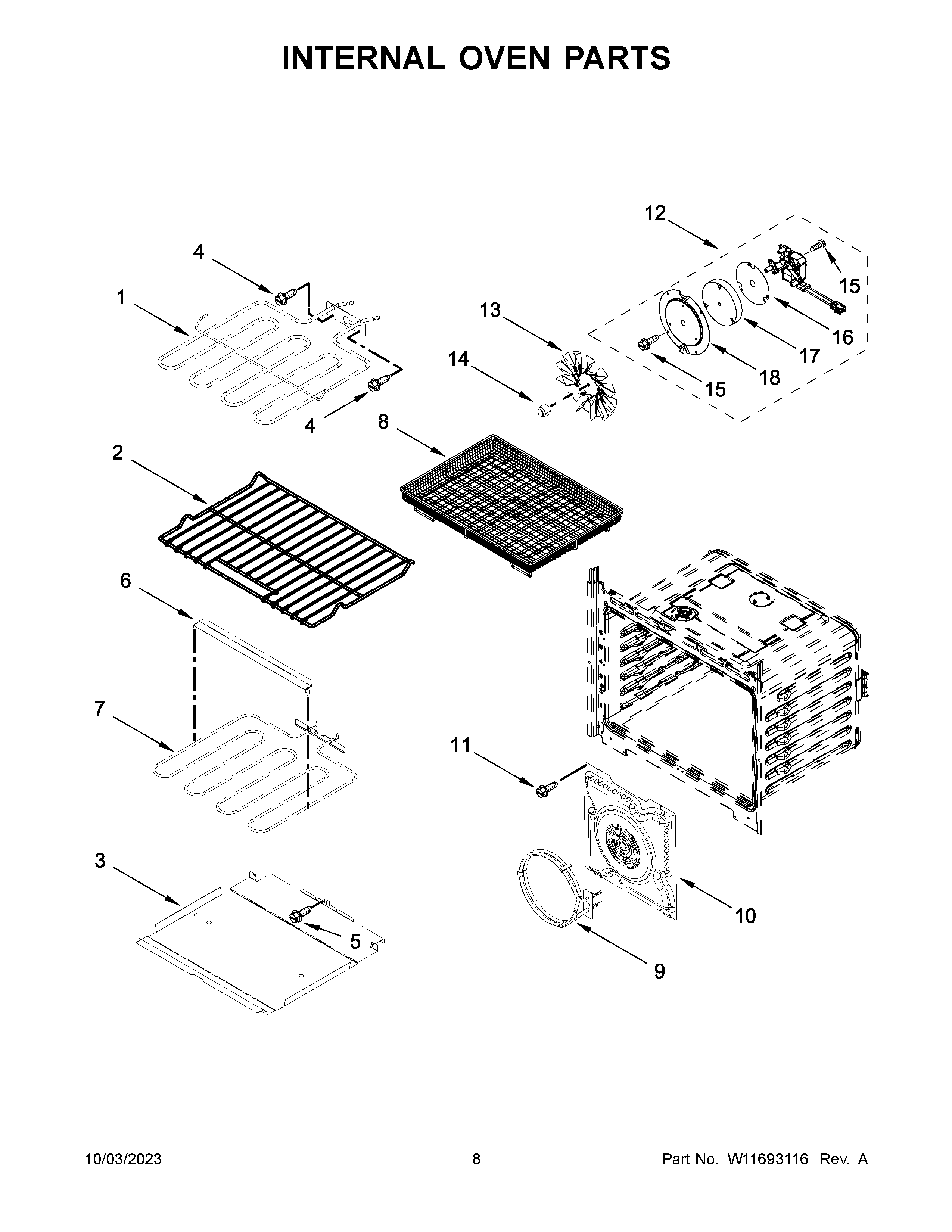

MOEC6030LZ01 05 – INTERNAL OVEN PARTS

MOEC6030LZ01 05 – INTERNAL OVEN PARTS

Written by

in

MOEC6030LZ01 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11617232 Whirlpool Broil Element
2WPW10554526 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W11692811 Whirlpool Fryer Basket
9WPW10260248 Whirlpool Element Assembly
10W10359278 Whirlpool Baffle Conv
11WP74003976 Whirlpool Screw
12W11617227 Whirlpool Fan Motor
13W11548753 Whirlpool Convection Fan
14W11548755 Whirlpool Nut
15W10850807 Whirlpool Screw
16PLATE, CONVECT MOTOR
17INSULATION, CONVECT MOTOR
18COVER, CONVECT PLATE
