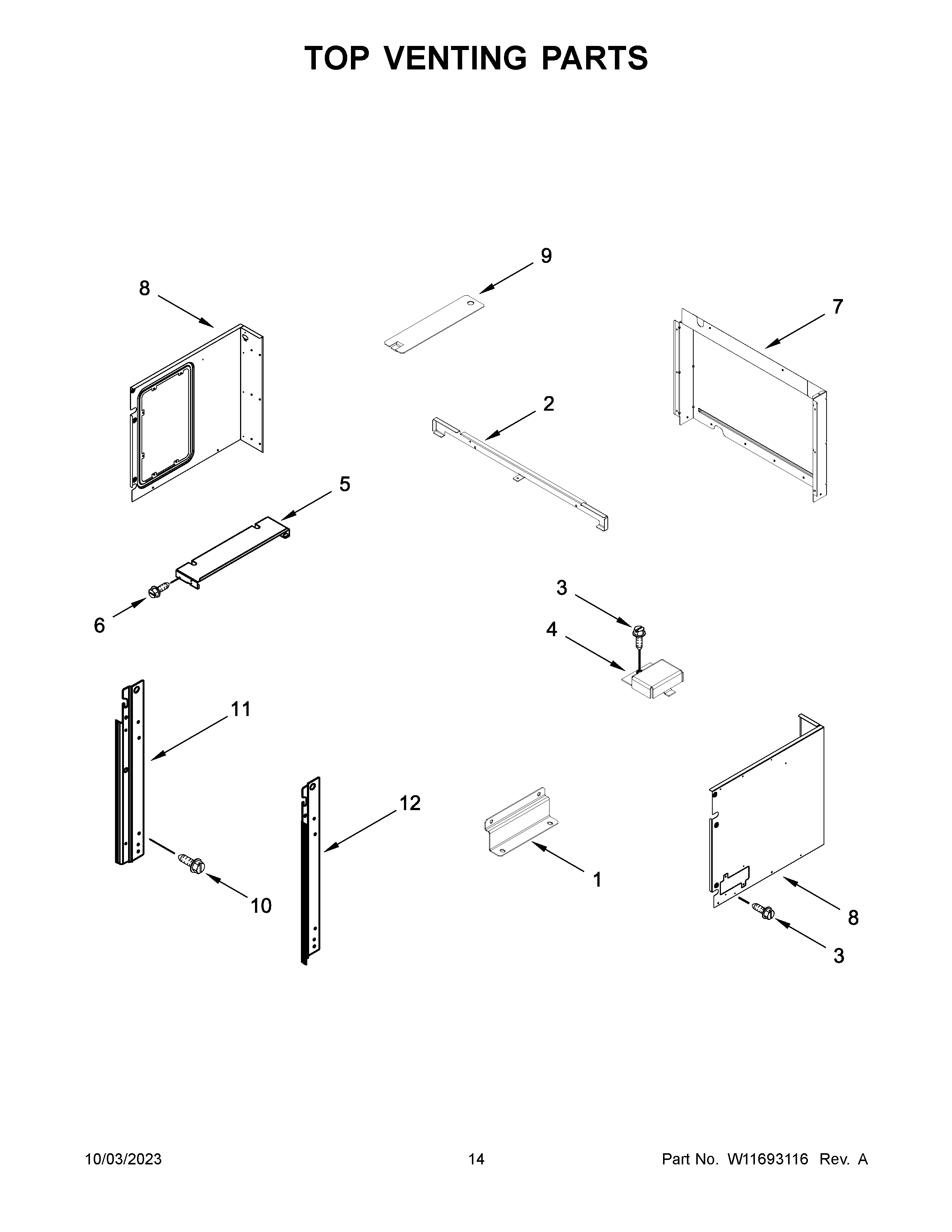

MOEC6030LZ01 08 – TOP VENTING PARTS

MOEC6030LZ01 08 – TOP VENTING PARTS

Written by

in

MOEC6030LZ01 08 – TOP VENTING PARTS

Products

PositionProduct
1W10283024 Whirlpool Mounting Bracket
2W10283022 Whirlpool Support
3SCREW
48285593 Whirlpool Oven Wire Cover
5SUPPORT, MICROWAVE MODULE
6WP4449745 Whirlpool Screw
7COVER-REAR
8ASIDE, COMBO CHASSIS (RIGHT)
8SIDE, COMBO CHASSIS (LEFT)
9W10356437 Whirlpool Cover Access
10SCREW (BLACK)
11W11627410 Whirlpool Mounting Rail
12W11627411 Whirlpool Mounting Rail
