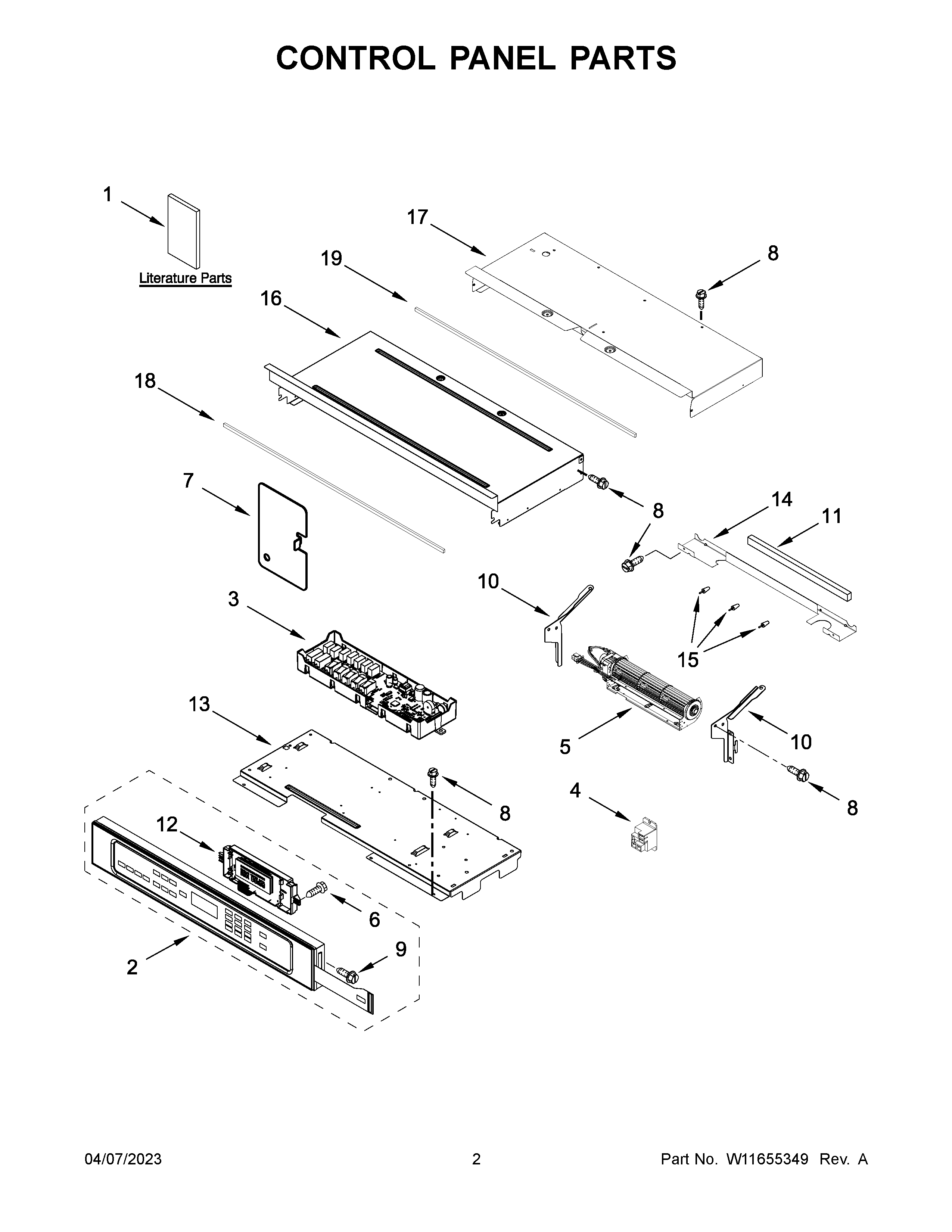

MOED6027LZ00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11157775 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11233570 Whirlpool Wire Harness
NI	HARNESS, SIGNAL
NI	HARNESS, MAIN
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11659255-includeCORE Whirlpool Console+Core
3	W11649130 Whirlpool Electronic Control Board + Core
4	W10874478 Whirlpool Power Relay
5	BLOWER
6	SCREW
7	COVER, WIFI
8	SCREW
9	SCREW (BLACK)
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, TOP FRONT 27 IN CHASSIS
17	COVER, TOP BACK 27 IN CHASSIS
18	GASKET, RUBBER (652MM)
19	W10728475 Whirlpool Foam Seal
