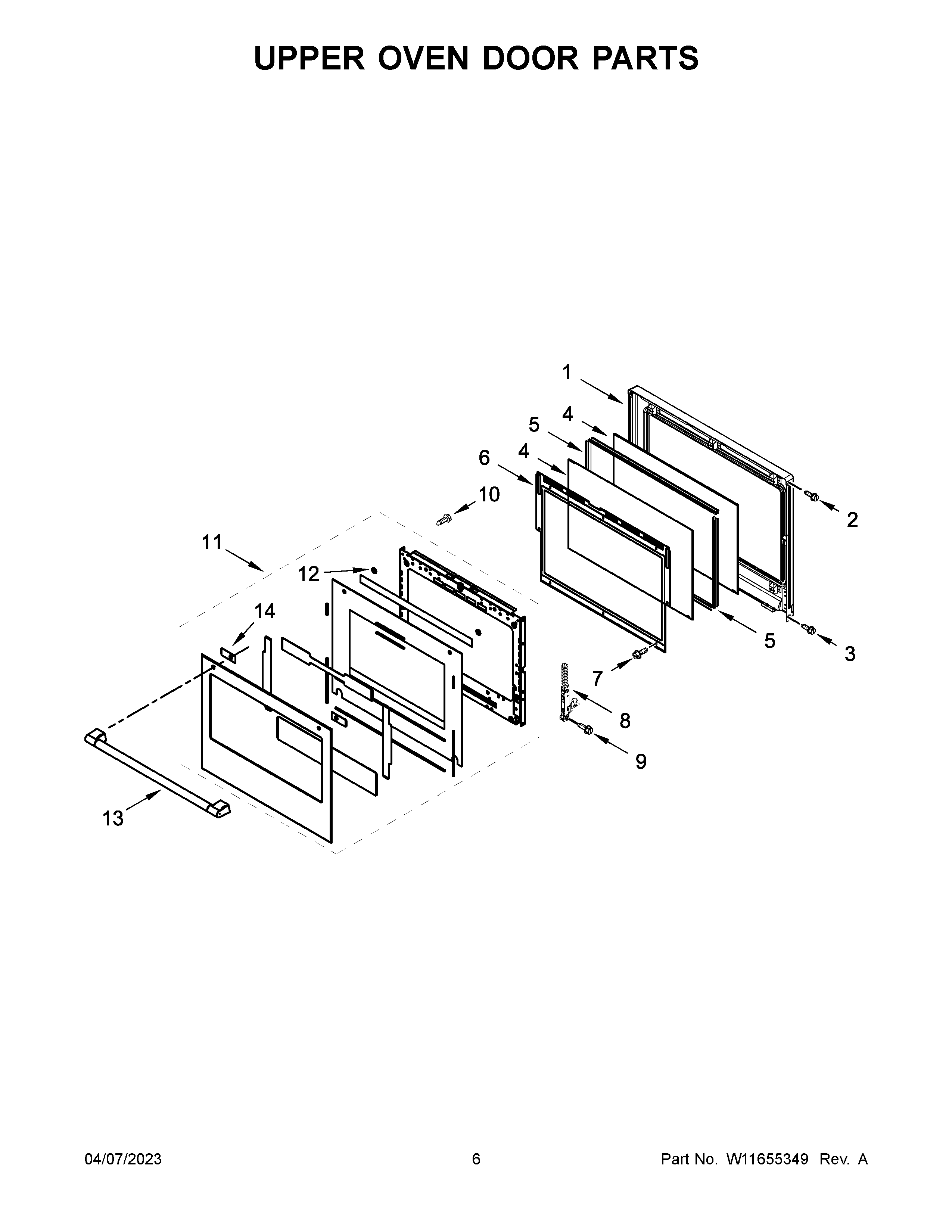

MOED6027LZ00 04 – UPPER OVEN DOOR PARTS

MOED6027LZ00 04 – UPPER OVEN DOOR PARTS

Written by

in

MOED6027LZ00 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8W11617222 Whirlpool Oven Door Hinge
8AW11617231 Whirlpool Oven Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11DOOR ASSEMBLY (STAINLESS)
12W11676355 Whirlpool Washer
13HANDLE ASSEMBLY (STAINLESS)
14W10650497 Whirlpool Spacer
