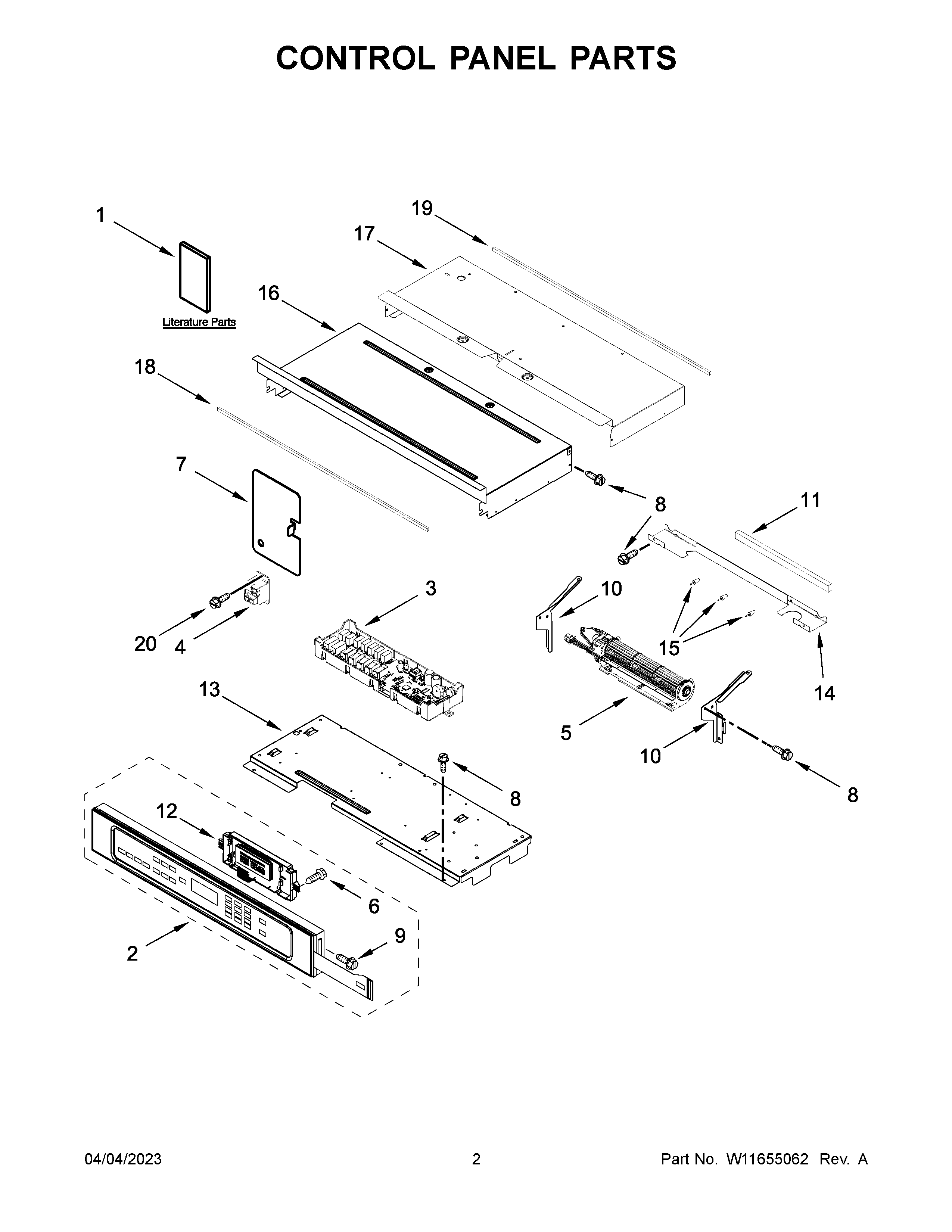

MOED6030LZ00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11602626 Whirlpool Oven Microwave Hardware
NI16515 Whirlpool Clip
NIW11727826 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11157775 Whirlpool Wire Harness
NIW11233570 Whirlpool Wire Harness
NIHARNESS, SIGNAL
NIHARNESS, MAIN
1OWNER'S MANUAL
1AQUICK START GUIDE
1BTECH SHEET
2W11655070-includeCORE Whirlpool Console+Core
3W11649130 Whirlpool Electronic Control Board + Core
4W10874478 Whirlpool Power Relay
5BLOWER
6SCREW
7COVER, WIFI
8SCREW
9SCREW (BLACK)
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15W10351295 Whirlpool Bumper Assembly
16COVER, 30 IN CHASSIS TOP FRONT
17COVER, 30 IN CHASSIS TOP BACK
18GASKET, RUBBER
19W10728475 Whirlpool Foam Seal
20SCREW
