MOES6027LZ00 03 – OVEN PARTS

MOES6027LZ00 03 – OVEN PARTS

Written by

in

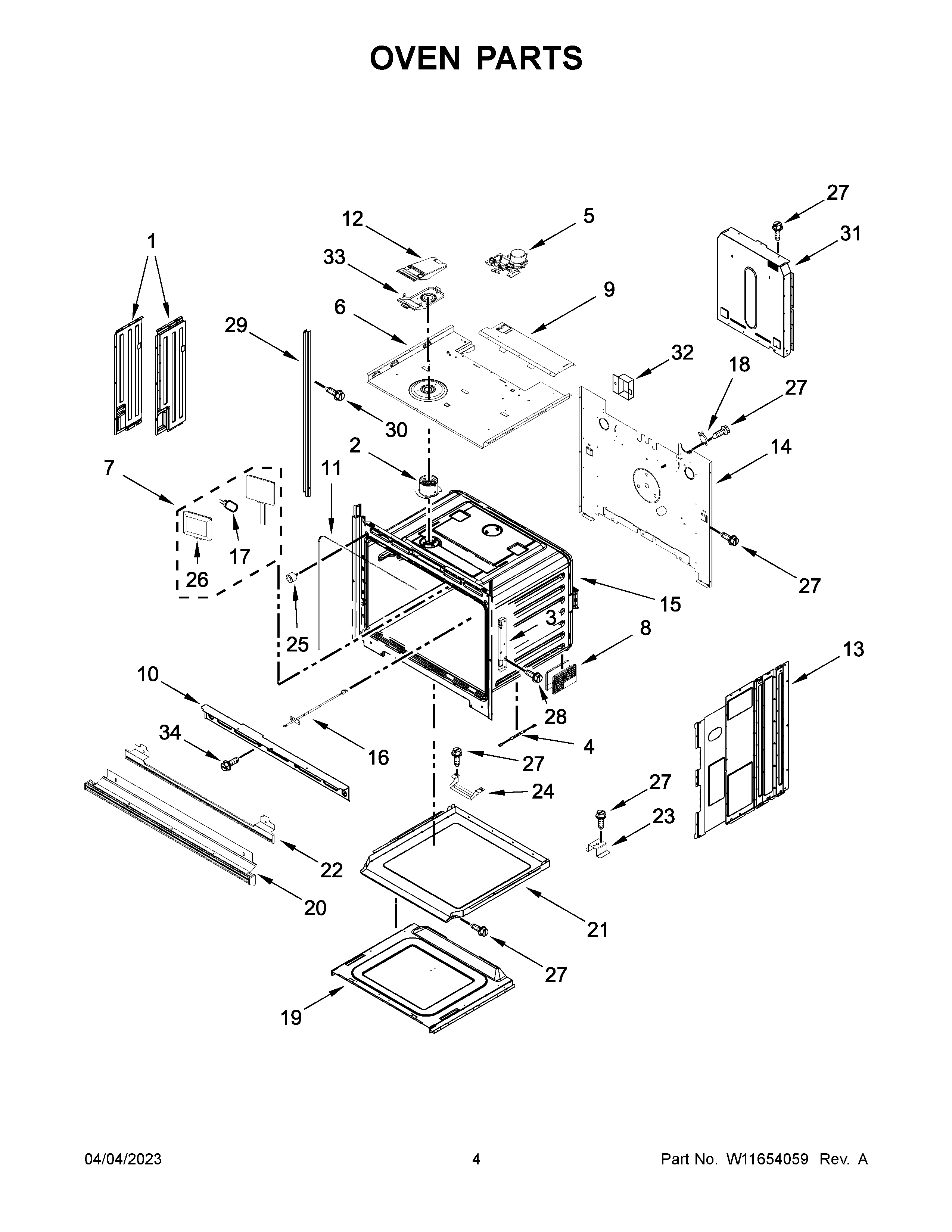

MOES6027LZ00 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, BACK
1AW11598151 Whirlpool Side Cover
1W11598150 Whirlpool Side Cover
2W11240525 Whirlpool Vent Tube
3HINGE-RECV
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11334858 Whirlpool Vent Exhaust
11W11608109 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
16W11598120 Whirlpool Thermostat
17WPW10472384 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20VENT-OVEN
21COVR-ACESS
22TRIM, BOTTOM VENT (BLACK)
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28WPW10254050 Whirlpool Screw
29AW11235462 Whirlpool Mounting Rail
29W11235463 Whirlpool Mounting Rail
30W11602623 Whirlpool Screw
31W11165250 Whirlpool Rear Cover
328285593 Whirlpool Oven Wire Cover
33BASE, VENT EXHAUST
34WPY706189 Whirlpool Stove Screw
