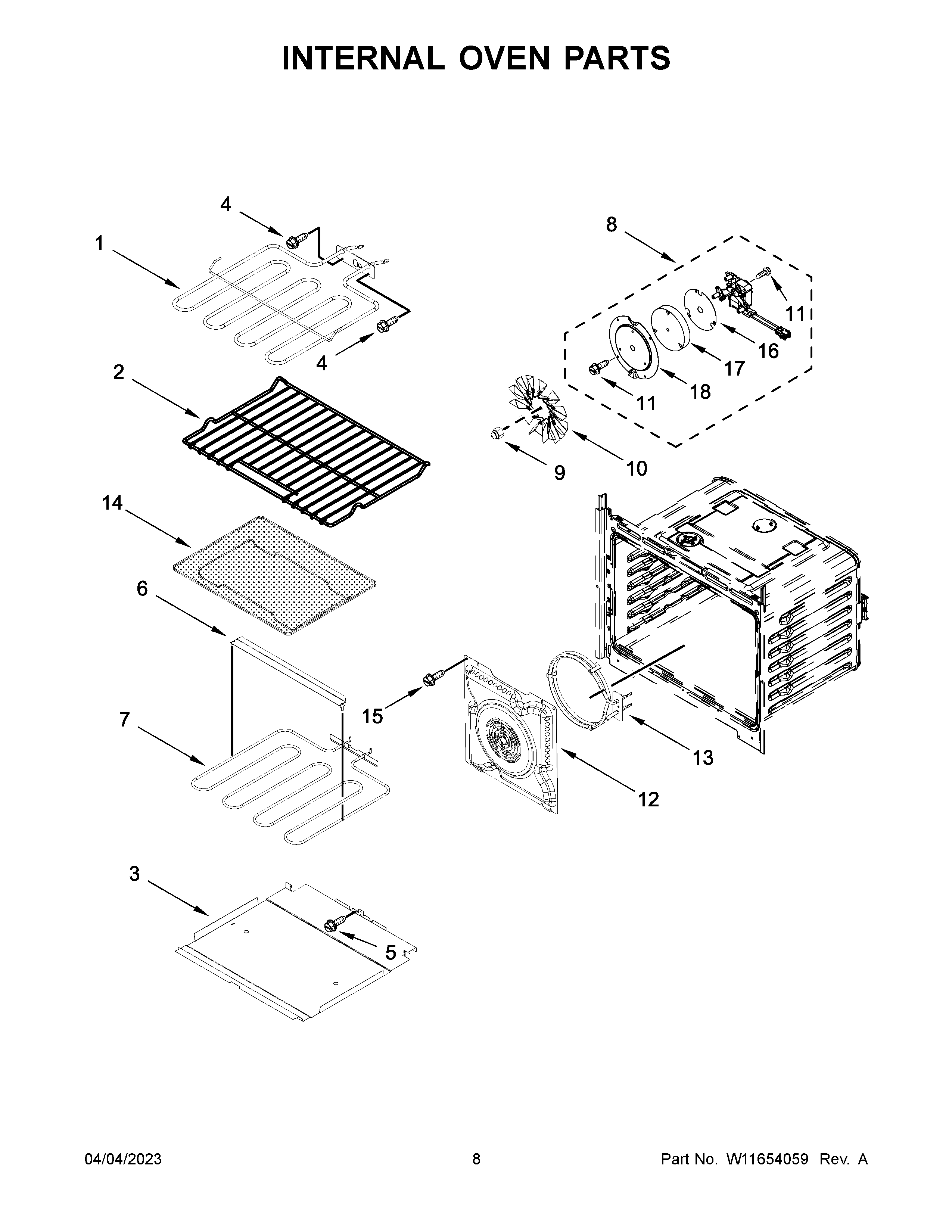

MOES6027LZ00 05 – INTERNAL OVEN PARTS

MOES6027LZ00 05 – INTERNAL OVEN PARTS

Written by

in

MOES6027LZ00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11617232 Whirlpool Broil Element
2WPW10554529 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W11617227 Whirlpool Fan Motor
9W11548755 Whirlpool Nut
10W11548753 Whirlpool Convection Fan
11W10850807 Whirlpool Screw
12W10359278 Whirlpool Baffle Conv
13WPW10260248 Whirlpool Element Assembly
14W11692811 Whirlpool Fryer Basket
15WP74003976 Whirlpool Screw
16PLATE, CONVECT MOTOR
17INSULATION, CONVECT MOTOR
18COVER, CONVECT PLATE
