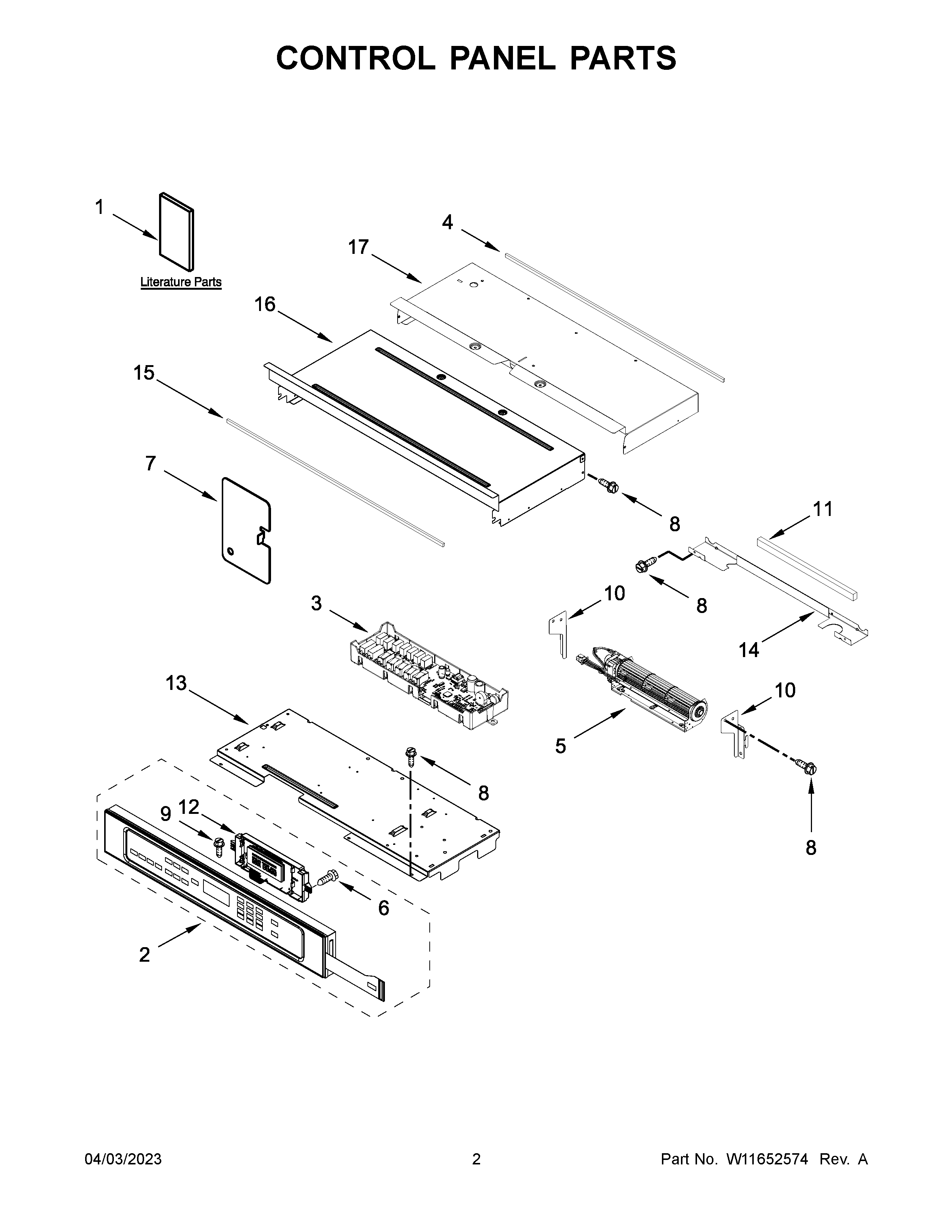

MOES6030LZ00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
NI	W10487999 Whirlpool Clip
NI	W10655464 Whirlpool Bracket
NI	W11727826 Whirlpool Wire Harness
NI	BAG, HARDWARE
NI	W11157775 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11655068-includeCORE Whirlpool Console+Core
3	W11648973 Whirlpool Electronic Control Board + Core
4	W10728475 Whirlpool Foam Seal
5	BLOWER
6	SCREW
7	COVER, WIFI
8	SCREW
9	SCREW (BLACK)
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10803991 Whirlpool Electronic Control Board + Core
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	GASKET, RUBBER
16	COVER, 30 IN CHASSIS TOP FRONT
17	COVER, 30 IN CHASSIS TOP BACK
