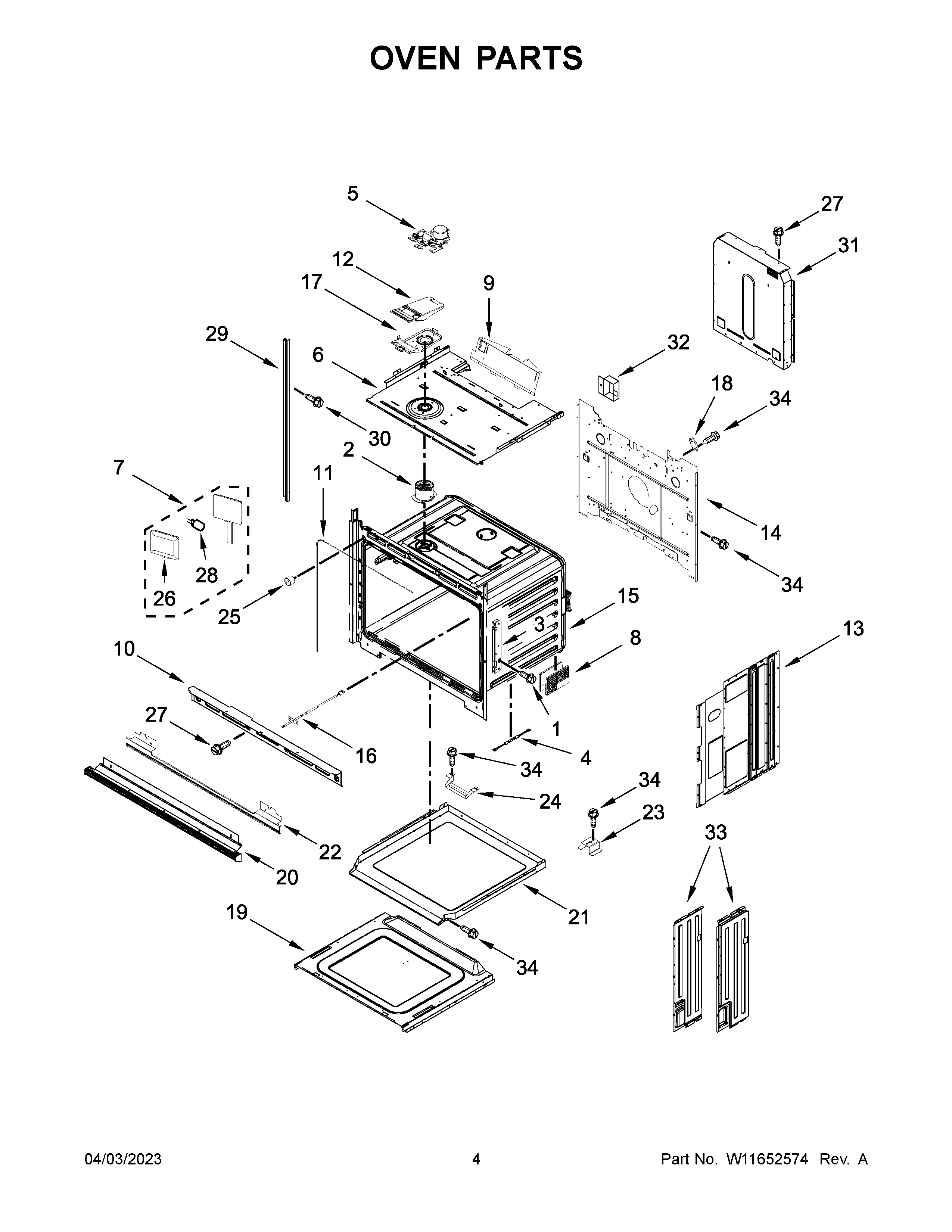

MOES6030LZ00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, CAVITY
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	HINGE-RECV
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11292252 Whirlpool Oven Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	W11715951 Whirlpool Vent Trim
11	W11676903 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
16	W11598120 Whirlpool Thermostat
17	BASE, VENT EXHAUST
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11648980 Whirlpool Vent
21	COVR-ACESS
22	W11714646 Whirlpool Trim Assembly
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	WPY706189 Whirlpool Stove Screw
28	WPW10472384 Whirlpool Light Bulb
29A	W11235462 Whirlpool Mounting Rail
29	W11235463 Whirlpool Mounting Rail
30	W11602623 Whirlpool Screw
31	W11165250 Whirlpool Rear Cover
32	8285593 Whirlpool Oven Wire Cover
33A	W11598151 Whirlpool Side Cover
33	W11598150 Whirlpool Side Cover
34	SCREW
