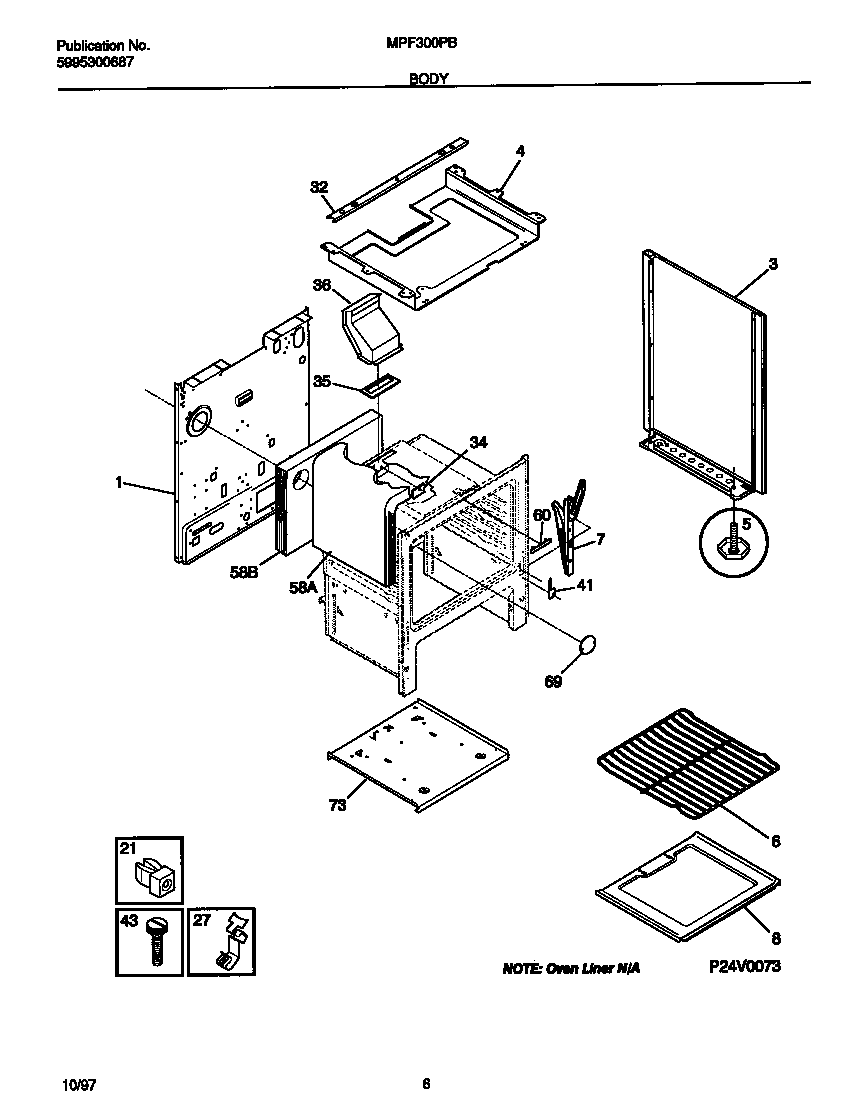

MPF300PBDE 04 – BODY

MPF300PBDE 04 – BODY

Written by

in

MPF300PBDE 04 – BODY

Products

PositionProduct
*634833131903 Frigidaire Door/Drawer Bumper
*63481Screw,cup pt ,8-18 x 0.375 ,chrome
*63482WCI 316073400
1WCI 316029412
3PANEL-BODYSIDE,ALMOND ,LH
3WCI 316081030
4WCI 316067206
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BWCI 3934058
6316067902 Frigidaire Oven Rack
7AWCI 316007007
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
41WCI 3131570
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
