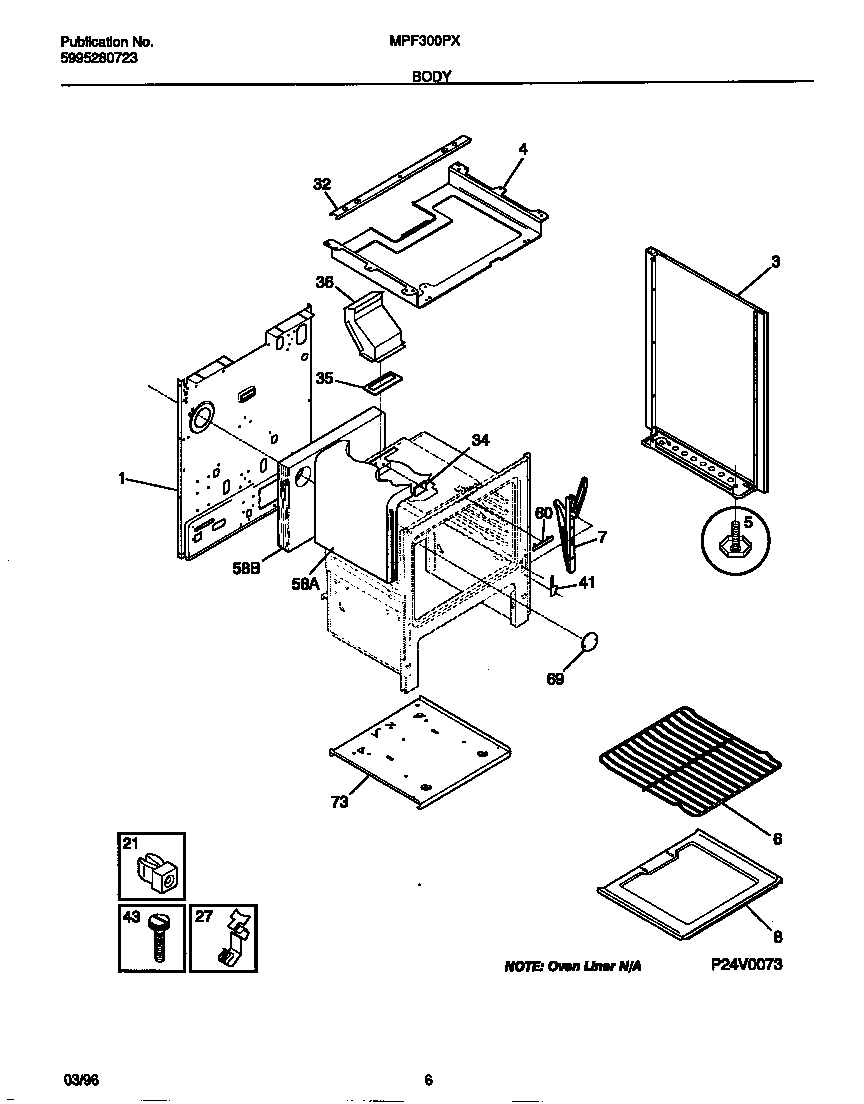

MPF300PXWA 04 – BODY

MPF300PXWA 04 – BODY

Written by

in

MPF300PXWA 04 – BODY

Products

PositionProduct
*71162Screw,cup pt ,8-18 x 0.375 ,chrome
*71163WCI 316073400
1WCI 316029410
3WCI 316081004
3WCI 316081005
4WCI 316067206
5WCI 3934058
5316116000 Frigidaire Screw
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
73203010 Frigidaire Clip
7HINGE-OVEN DOOR,ASSEMBLY
8BTTM-OVEN
8316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
41WCI 3131570
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
