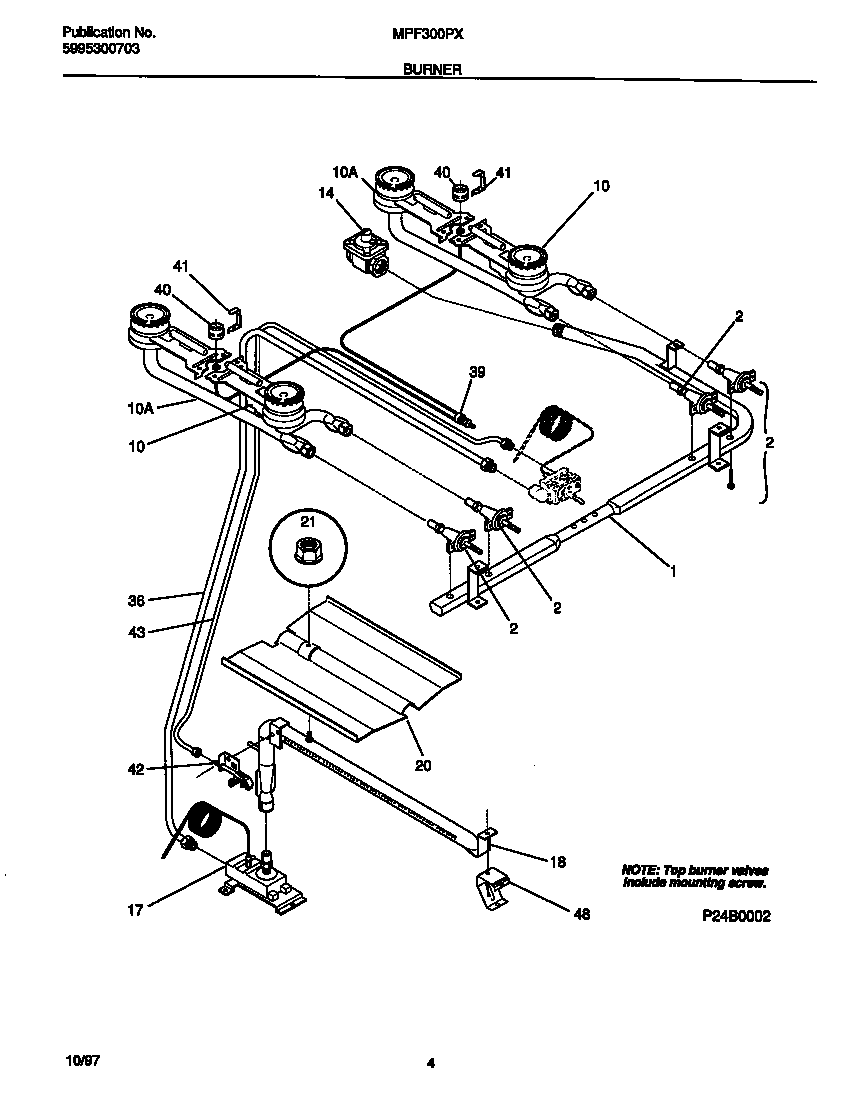

MPF300PXWC 03 – BURNER

MPF300PXWC 03 – BURNER

Written by

in

MPF300PXWC 03 – BURNER

Products

PositionProduct
1WCI 5303280588
2WCI 316098600
2316048200 Frigidaire Oven Screw
105304506426 Frigidaire Oven Top Rear Burner
105304506427 Frigidaire Oven Range Surface Burner (White)
14WCI 5303016997
17316089500 Frigidaire Oven Screw
17WCI 5303280593
18WCI 5303280585
20WCI 3203265
215303013272 Frigidaire Oven Nut
36WCI 316060800
39TUBING-TOP PILOT, DUAL
40CAP-TOP PILOT, (2)
41SHIELD-PILOT, STAINLESS STEEL, (2)
42WCI 5303280589
43Tubing`thermo/pilot `3/16 ,alum
48WCI 3018603
