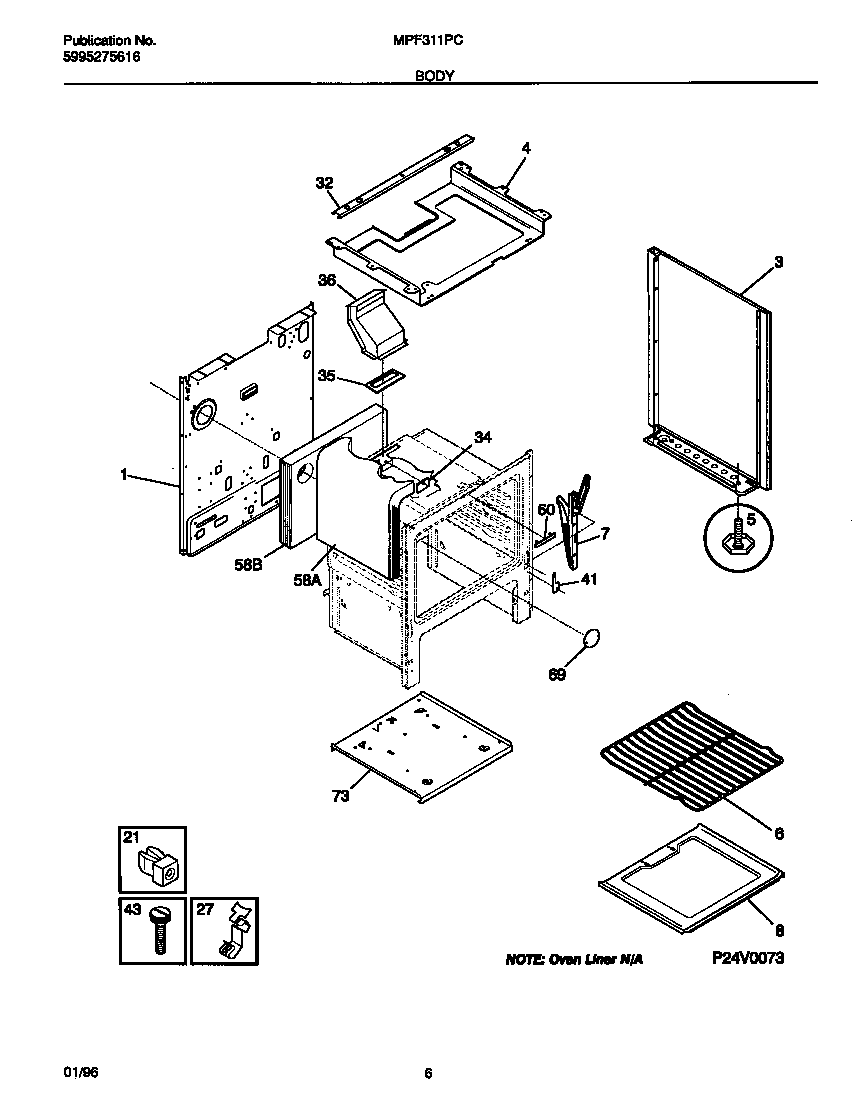

MPF311PCWB 04 – BODY

MPF311PCWB 04 – BODY

Written by

in

MPF311PCWB 04 – BODY

Products

PositionProduct
*83683WCI 5303281584
*83684BUMPER, COOKTOP (4)
1WCI 316029410
3WCI 316081004
3WCI 316081005
4WCI 316067204
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
73203010 Frigidaire Clip
7HINGE-OVEN DOOR,ASSEMBLY
8316064600 Frigidaire Oven Support
8BTTM-OVEN
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
41WCI 3131570
43316282700 Frigidaire Oven Screw
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
