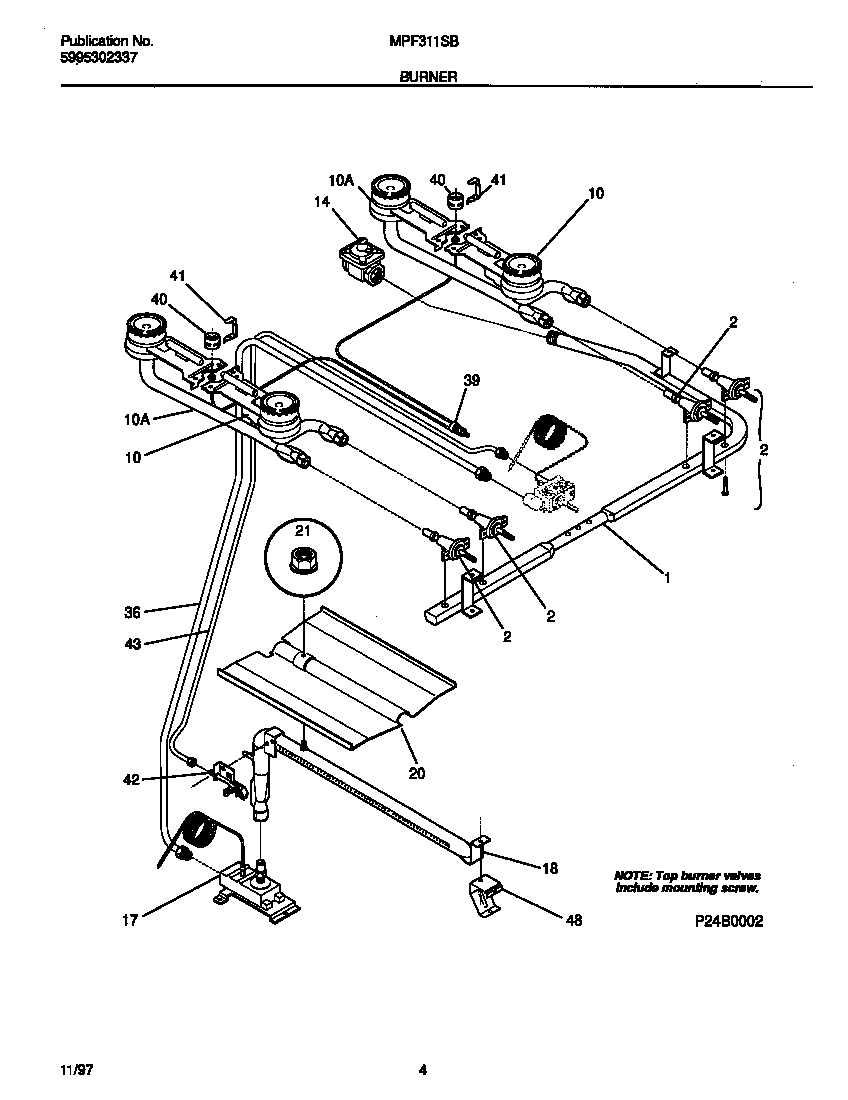

MPF311SBWD 03 – BURNER

Products

PositionProduct
1WCI 5303280588
2B316048200 Frigidaire Oven Screw
2AWCI 316098600
105304506426 Frigidaire Oven Top Rear Burner
105304506427 Frigidaire Oven Range Surface Burner (White)
14WCI 5303016997
17WCI 5303280593
18WCI 5303280585
20WCI 5303288409
215303013272 Frigidaire Oven Nut
36WCI 316060800
39TUBING-TOP PILOT, DUAL
40CAP-TOP PILOT, (2)
41SHIELD-PILOT, STAINLESS STEEL, (2)
42WCI 5303280589
43Tubing`thermo/pilot `3/16 ,alum
48WCI 3018603
