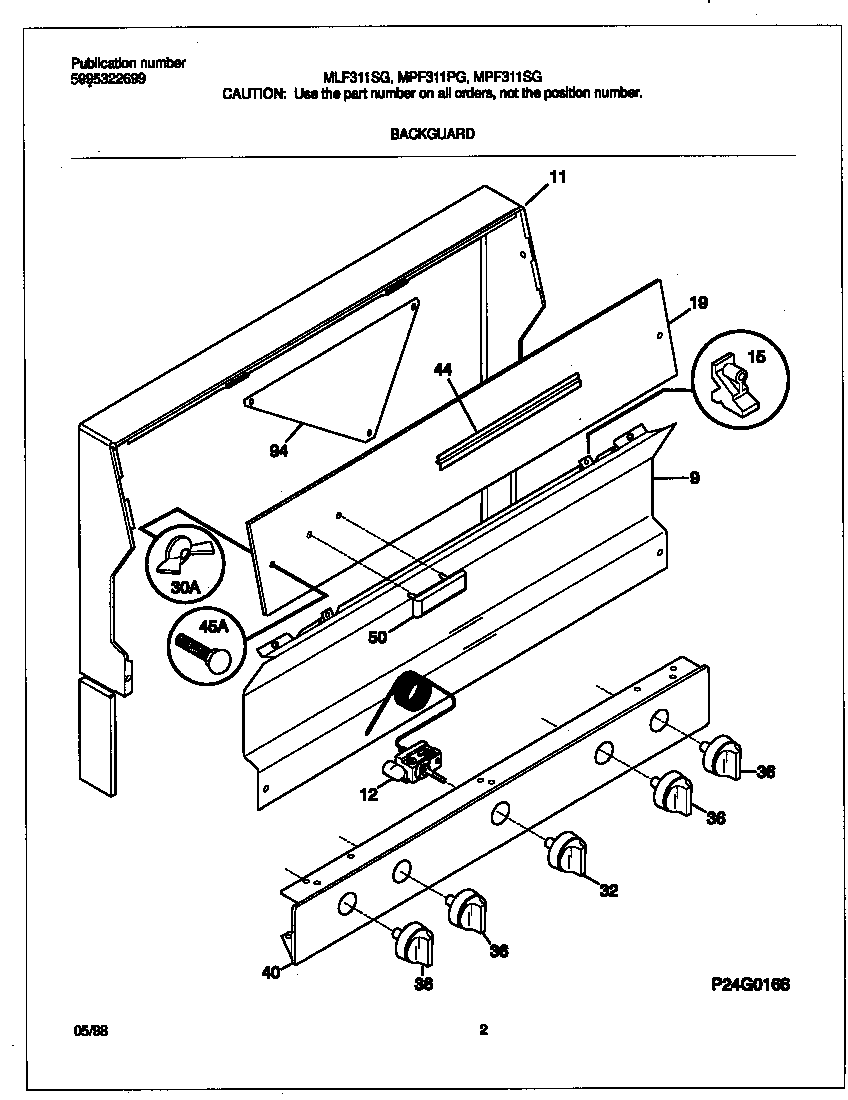

MPF311SGDC 02 – BACKGUARD

MPF311SGDC 02 – BACKGUARD

Written by

in

MPF311SGDC 02 – BACKGUARD

Products

PositionProduct
*18120316137003 Frigidaire Range / Cooktop End Cap
*18125SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
*18123Instructions,installation
*18124316112500 Frigidaire Oven Template
*18122316021109 Frigidaire Oven Screw
*18121Screw,cup pt ,8-18 x 0.375 ,chrome
9WCI 316043602
11Trim,wrapper ,black
12WCI 5303935014
15SUPPORT-BACKGUARD,(2)
19WCI 316034107
30WCI 316064300
32WCI 316102304
36KNOB-TOP VALVE, (4)
40WCI 319009214
44WCI 3131468
45WCI 316056902
50WCI 316096900
94WCI 316111300
