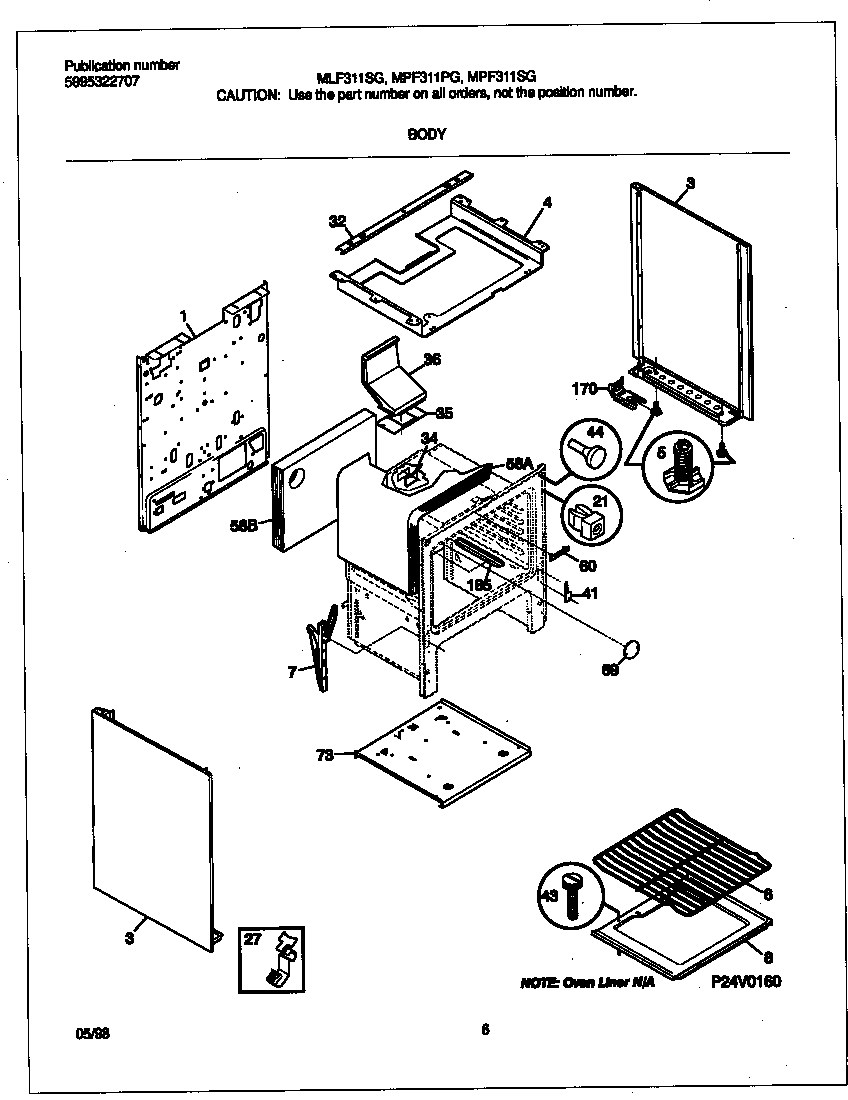

MPF311SGDD 04 – BODY

MPF311SGDD 04 – BODY

Written by

in

MPF311SGDD 04 – BODY

Products

PositionProduct
*46490316064600 Frigidaire Oven Support
*46488Screw,cup pt ,8-18 x 0.375 ,chrome
*46489WCI 316073400
1WCI 316029412
3BWCI 316081037
3AWCI 316081036
4WCI 316067206
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8BTTM-OVEN
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73WCI 316109902
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
185316112900 Frigidaire SHIELD
