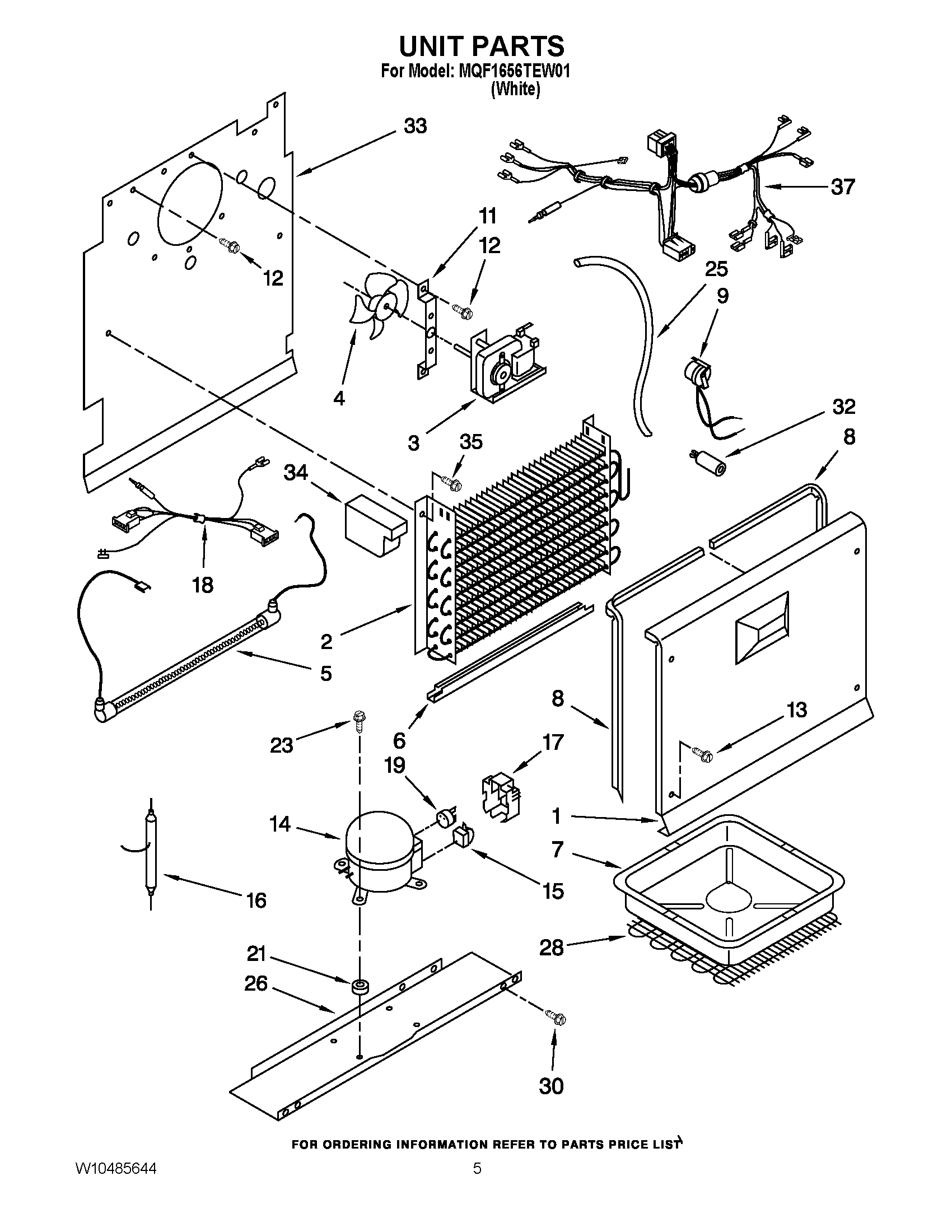

MQF1656TEW01 03 – UNIT PARTS – Aparts

MQF1656TEW01 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 4-82699-001
2	MAY 4-81546
3	MAY 3-60336-001
4	MAY W10445742
5	MAY 3-80405-003
6	MAY 3-82697-001
7	MAY 4-82674-001
8	MAY 3-60180-001
9	MAY 1-81801-001
11	BRACKET, FAN
12	MAY 3-80732-004
13	MAY 3-24004-107
14	COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21)
15	MAY W10466655
16	MAY W10459086
17	MAY W10462677
18	MAY 4-81785-001
19	MAY 2-34286-038
21	MAY 13146462
23	MAY 2-82082-001
25	MAY 2-82072-003
26	MAY W10470130
28	MAY 4-82234-002
30	MAY 3-24838-048
32	MAY 1-80275-101
33	MAY 4-80504-101
34	MAY 1-80252-101
35	MAY 3-24004-079
37	MAY 4-82408-001
