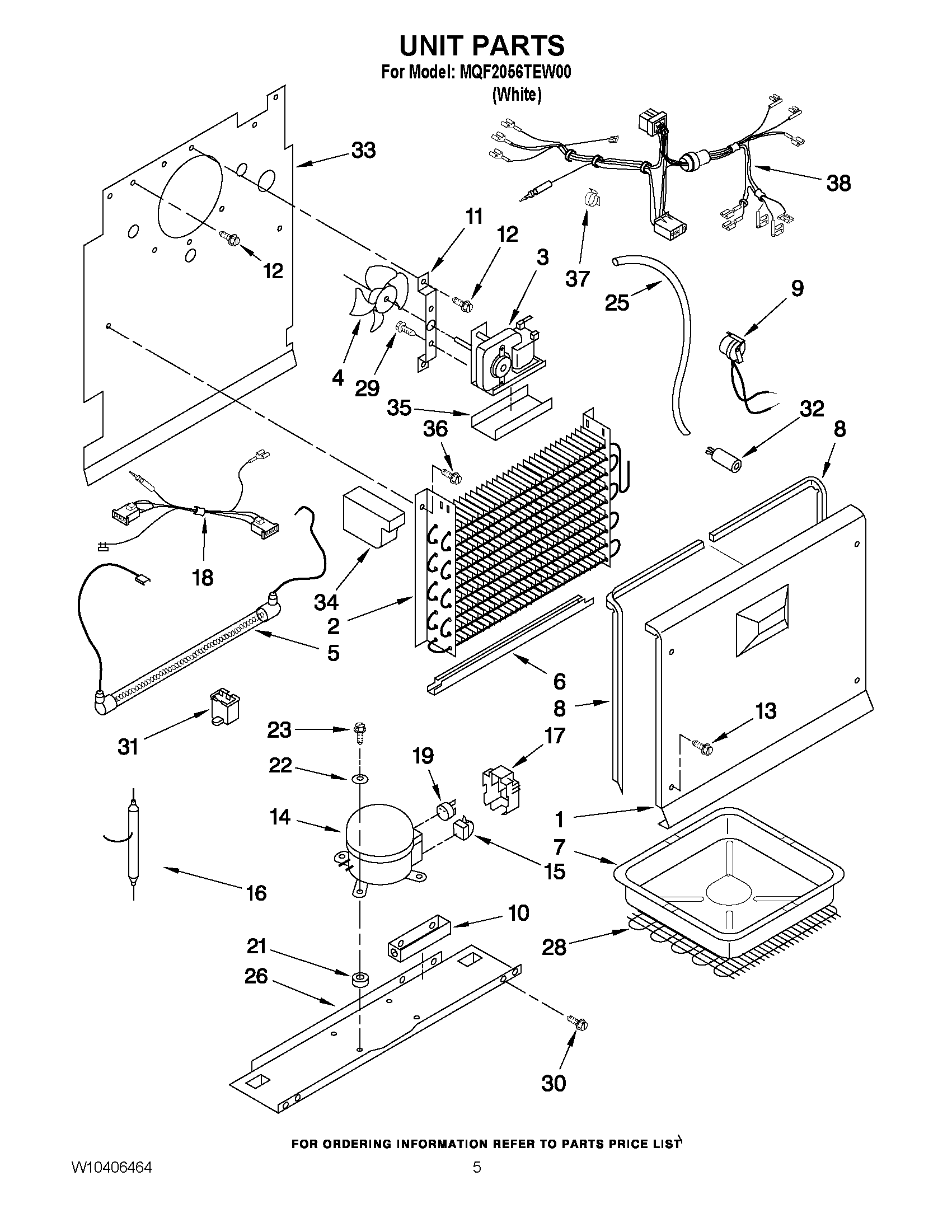

MQF2056TEW00 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 4-82699-001
2	MAY 4357244
3	MAY 4390914
4	BLADE, FAN
5	MAY W10164625
6	MAY W10164624
7	Pan, Drain
8	MAY 4390663
8	MAY 4390664
9	MAY 8210253
10	BOX, CONTROL
11	MAY 4357129
12	MAY 4356943
13	Screw (4)
14	COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21)
15	MAY 4356738
16	MAY 4357299
17	MAY 4356777
18	MAY 8210426
19	MAY 4356776
21	COMPRESSOR, MOUNTING GROMMET
22	MAY 4356847
23	Bolt, Compressor
25	MAY 8210225
26	MAY W10260291
28	MAY 8210248
29	MAY 4356970
30	MAY 4357277
31	MAY 8210224
32	MAY 4357020
33	MAY 4357123
34	Block, Foam
35	MAY 4357128
36	MAY 4390821
37	CLIP
38	MAY W10280059
