MQF2056TEW02 04 – UNIT PARTS – Aparts

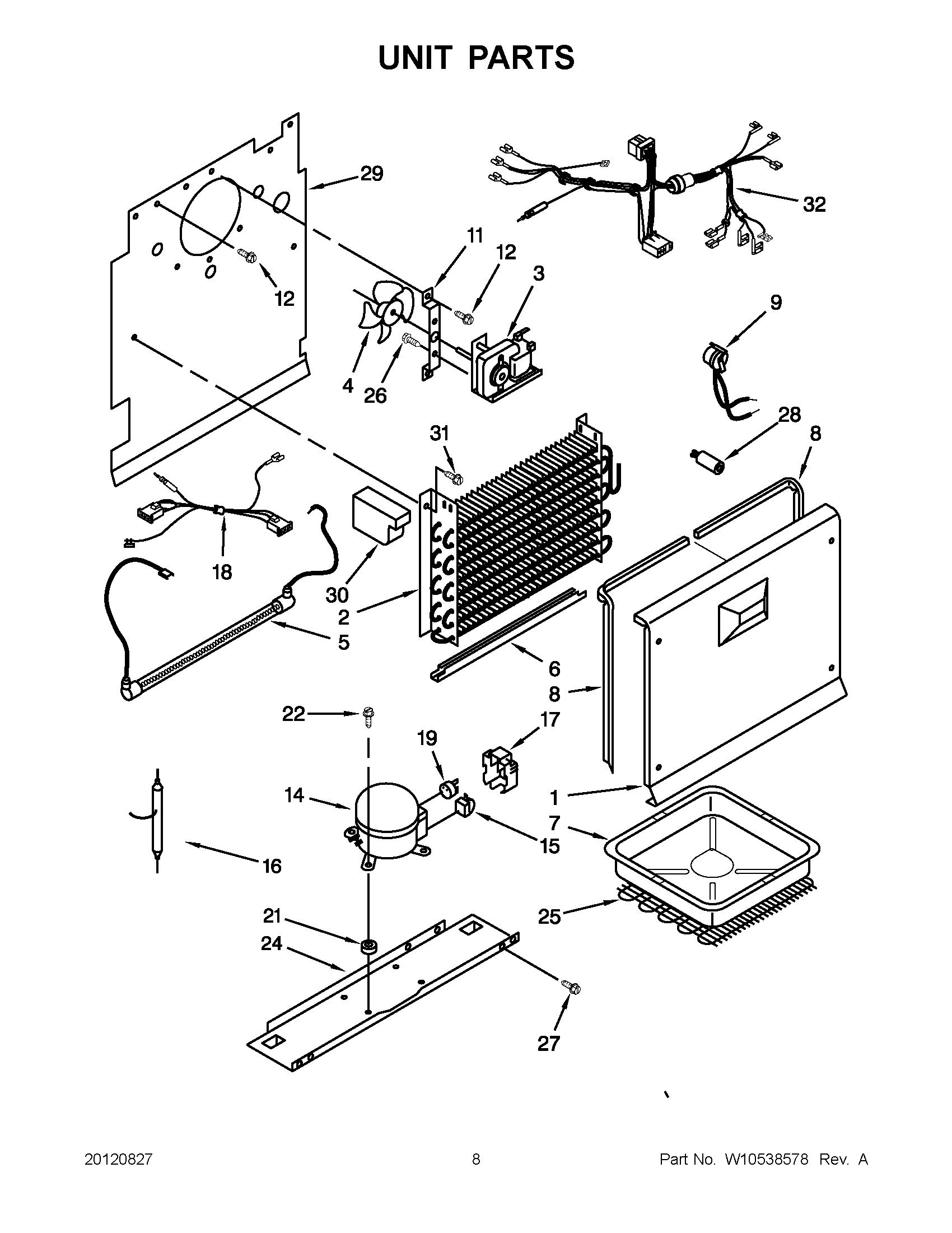

MQF2056TEW02 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10452370
2	MAY W10455861
3	MAY W10236142
4	Blade, Fan (Evaporator)
6	MAY 3-82697-001
7	MAY 4-82674-001
8	MAY 3-60180-002
8	MAY 3-60180-001
9	MAY W10419550
11	BRACKET, FAN
12	MAY 3-80732-004
14	COMPRESSOR
15	MAY W10466655
17	MAY W10462677
18	MAY W10507269
19	MAY 2-34286-037
21	MAY 3-23995-014
22	MAY 2-82082-001
24	MAY W10470133
25	MAY 4-82234-002
26	MAY 1-80271-104
27	MAY 3-24838-048
28	MAY 1-80275-101
29	MAY W10452115
30	MAY W10452121
31	MAY 3-24004-079
32	MAY 4-82408-001
