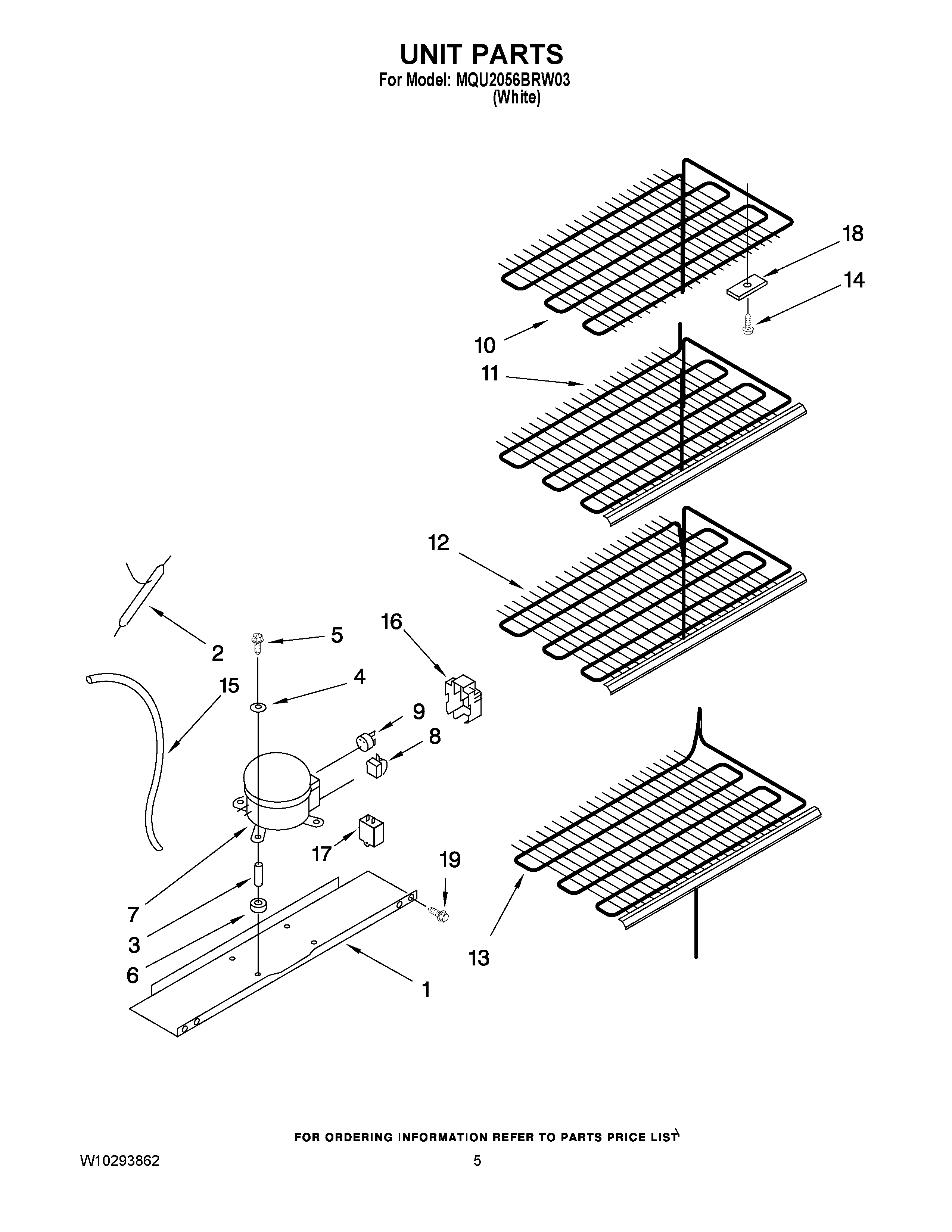

MQU2056BRW03 03 – UNIT PARTS

Written by

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	PAN, COMPRESSOR
2	MAY 4357299
3	MAY 4356846
4	MAY 4356847
5	Bolt, Compressor
6	COMPRESSOR, MOUNTING GROMMET
7	COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18)
8	MAY 4356738
9	MAY 4356776
10	EVAPORATOR TOP
11	MAY 8210254
12	MAY 8210255
13	EVAPORATOR BOTT
14	MAY 4357223
15	MAY 4390809
16	MAY 4356777
17	MAY 8210224
18	MAY 4357057
19	MAY 4357277
