MR1031UWC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

MR1031UWC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Written by

in

MR1031UWC 03 – INTERNAL CONTROLS/LATCH ASY/BASE

Products

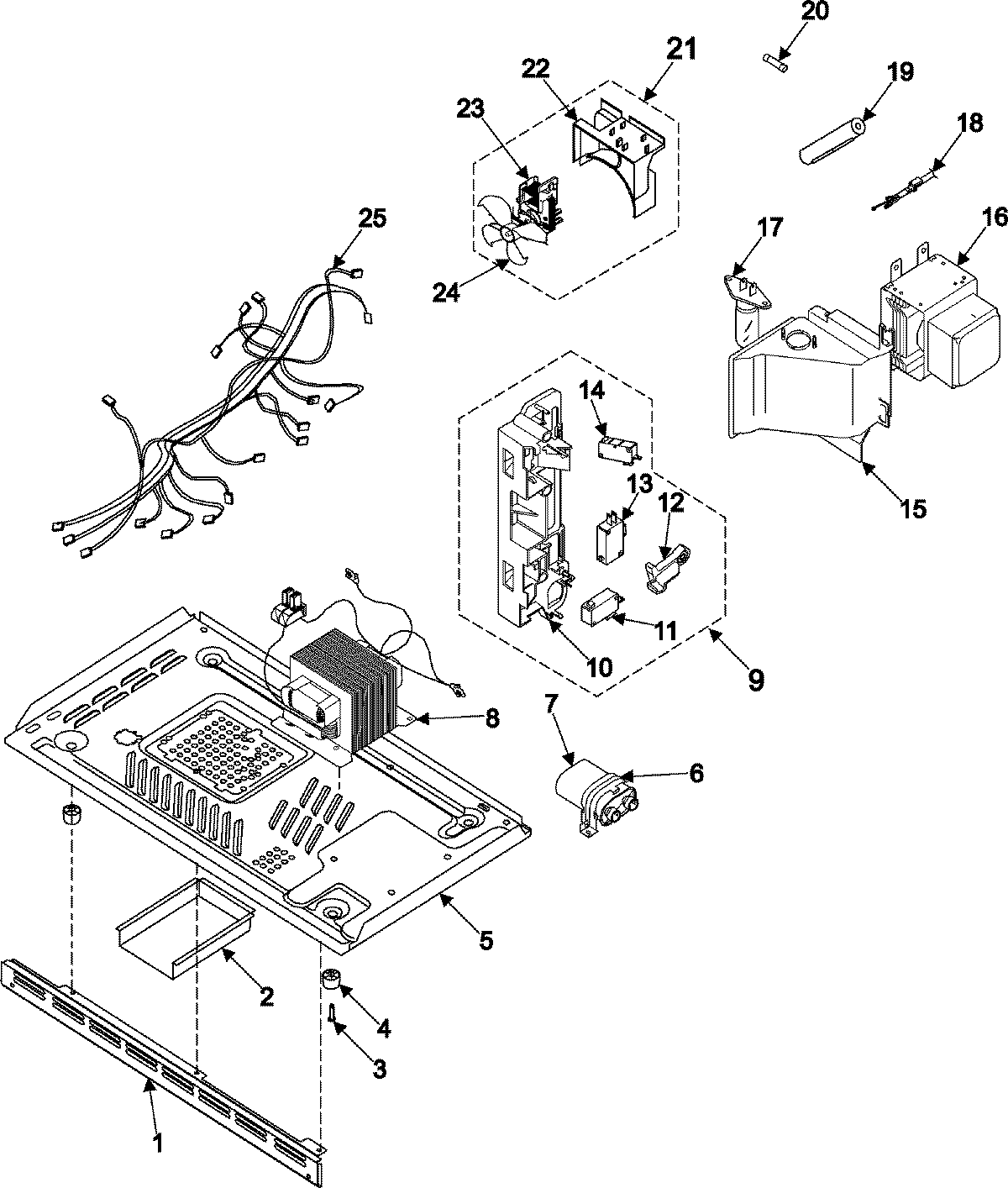

PositionProduct
1MAY DE64-00562A
2MAY DE70-40311A
3DE60-60025A Samsung PIN Foot
4DE61-40065A Samsung Microwave Foot
5SEE NOTE GROUND WIRE, GREEN
6MAY DE61-50106A
72501-001016 Samsung Capacitor
8MAY DE26-00088A
9MAY DE96-00115A
10MAY DE72-00138A
11MAY 3405-001042
12MAY DE66-00088A
13MAY 3405-001033
14WP3405-001034 Whirlpool Microwave Switch
15DUCT, AIR
16WPW10126794 Whirlpool Microwave Magnetron
174713-001102 Samsung Microwave Incandescent Lamp 125V 25W
18MAY DE39-20037J
203601-001198 Samsung Fuse Cartridge
21DE96-00305A Samsung Fan Motor Assembly
22MAY DE63-00210A
23MAY DE31-10185B
25MAY DE39-00256A
