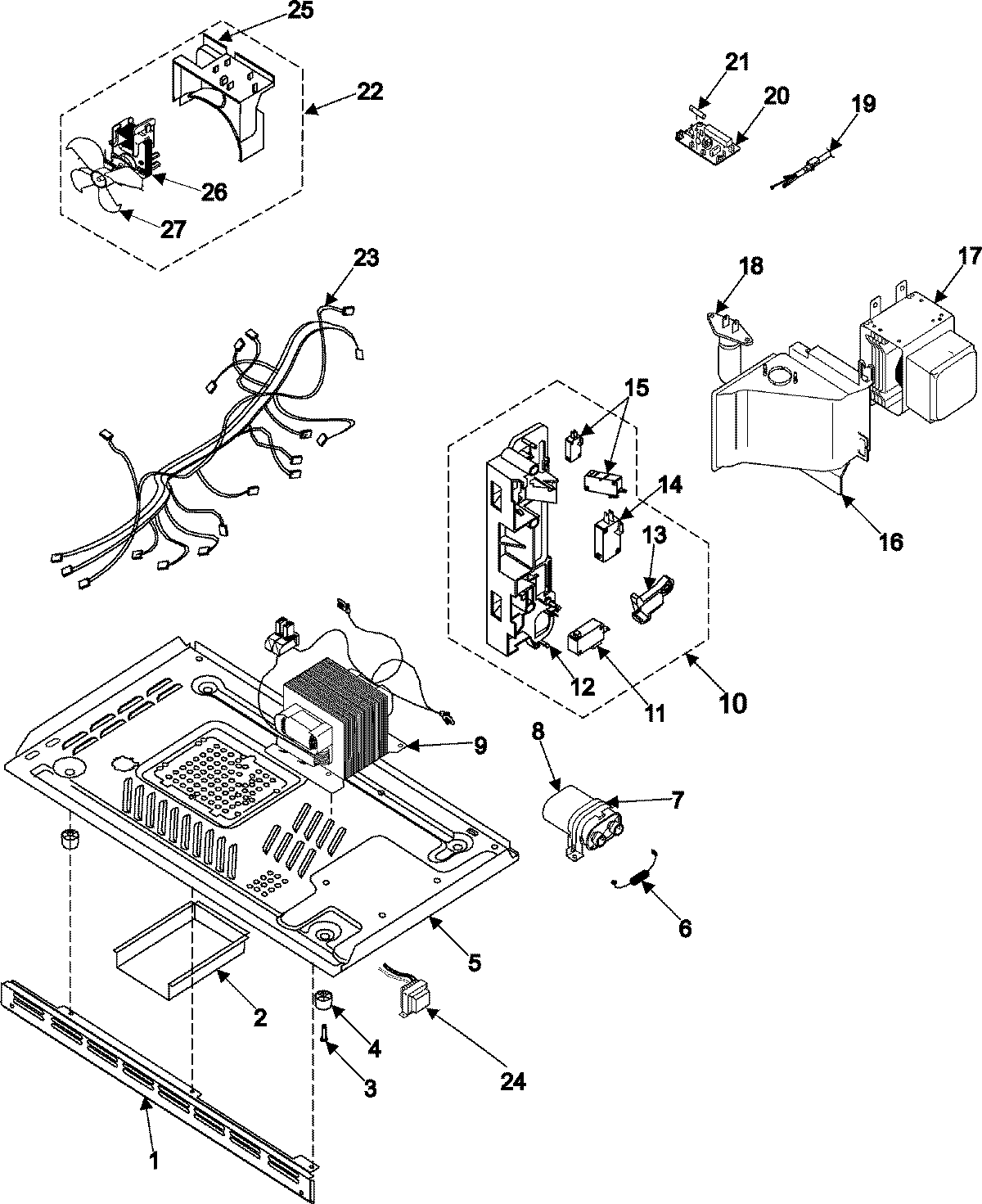

MR1032CBC 03 – INTERNAL CONTROL/LATCH ASY/BASE

Products

Position	Product
1	MAY DE64-01103B
2	MAY DE70-40311A
3	DE60-60025A Samsung PIN Foot
4	DE61-40065A Samsung Microwave Foot
5	MAY DE61-00557C
6	DE91-70063D Samsung Oven Microwave High Voltage Diode
7	SEE NOTE GROUND WIRE, GREEN
8	2501-001016 Samsung Capacitor
9	MAY DE26-00088A
10	MAY DE96-00115K
11	MAY DE72-00138A
12	MAY 3405-001042
13	MAY DE66-00088B
14	MAY 3405-001033
15	WP3405-001034 Whirlpool Microwave Switch
16	DUCT, AIR
17	MAY W10126795
18	MAY DE07-00006A
19	MAY DE39-20037H
20	ASSY NOISE FILTER
21	3601-001198 Samsung Fuse Cartridge
22	DE96-00305A Samsung Fan Motor Assembly
23	MAY DE39-00191A
24	MAY DE26-00037A
25	MAY DE63-00210A
26	MAY DE31-10185B
