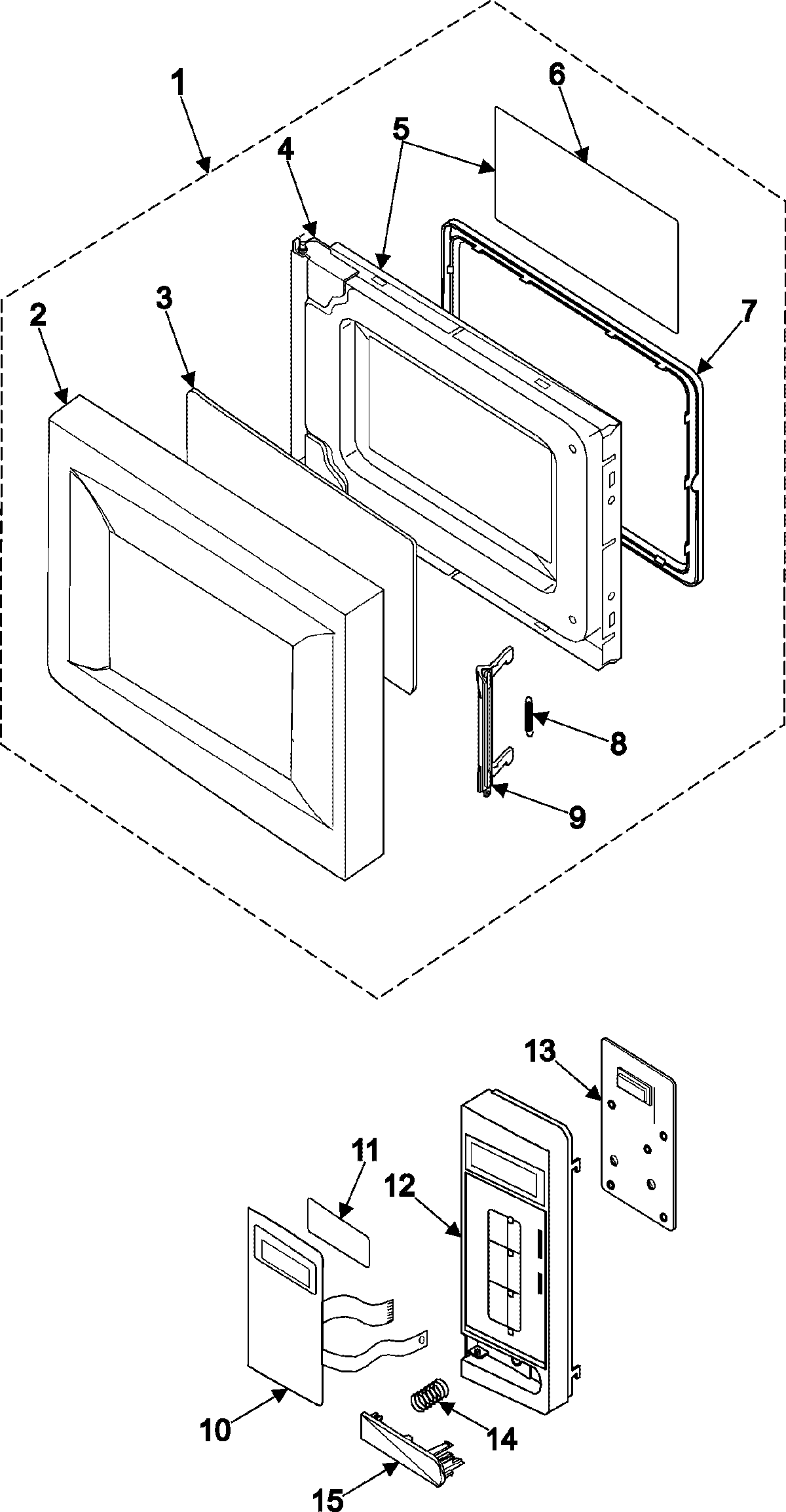

MR1032UBC 02 – CONTROL PANEL/DOOR ASSEMBLY

MR1032UBC 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

in

MR1032UBC 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

PositionProduct
NIDE66-20275K Samsung Push Button
1MAY DE94-00080Y
2MAY DE94-00483R
3MAY DE64-40317T
4MAY DE67-20197D
5MAY DE94-00910A
6MAY DE94-00912A
7MAY DE01-00118A
8MAY DE64-40012A
9MAY DE61-70128A
10MAY DE64-40006F
11MAY DE34-00190F
12WINDOW-DISPLAY
13DE72-70203K Samsung Control Panel
14MAY YRAK2LED154
15DE61-70076A Samsung Spring-Button
