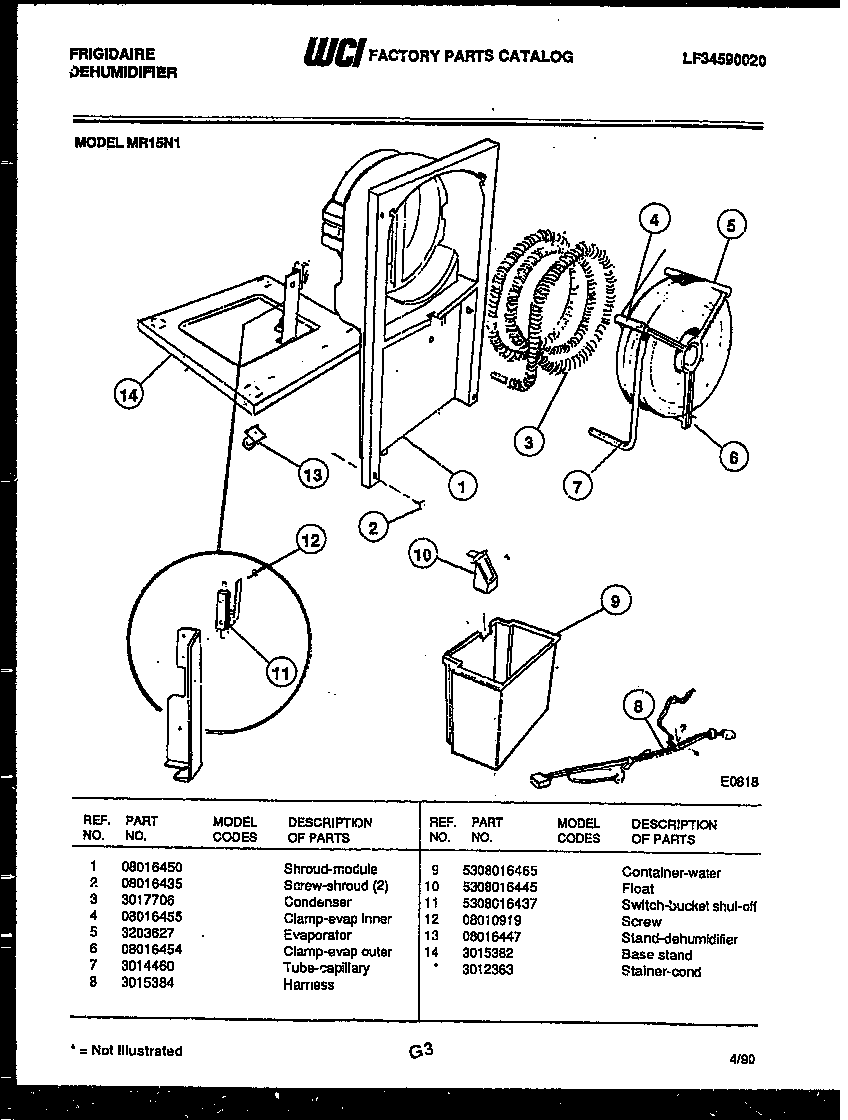

MR15N1 04 – WATER AND CONDENSING PARTS

Written by

Products

Position	Product
*63404	STRAINER-CONDENSER
1	SHROUD
2	WCI 08016435
3	WCI 3017706
4	CLAMP-EVAPORATOR INNER
5	WCI 3203627
6	CLAMP-EVAPORATOR OUTER
7	WCI 3014460
8	WCI 3015384
9	WCI 5308016465
10	WCI 5308016445
11	WCI 5308016437
12	SCREW FRONT PANEL (NON-ILLUSTRATED)
13	WCI 08016447
14	WCI 3015382
