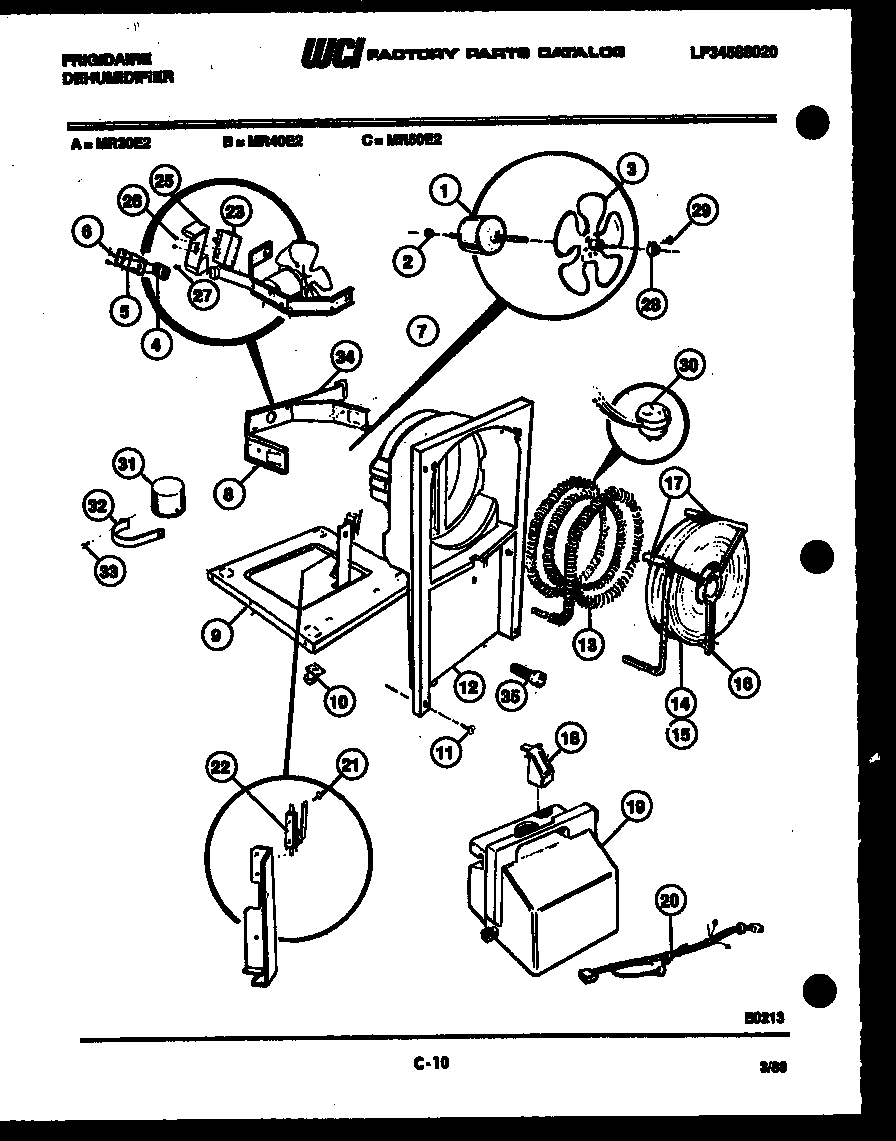

MR30E2 04 – AIR, WATER AND CONDENSING PARTS

Products

Position	Product
1	WCI 3016967
2	NUT-PLATE (NON-ILLUSTRATED)
4	WCI 8017384
5	WCI 8016541
8	WCI 8016449
9	CORD-SERVICE
10	WCI 8012697
11	WCI 8016435
12	WCI 8016450
13	WCI 3017455
14	WCI 3015642
15	CAPILLARY TUBE, CUT TO 25“
16	WCI 8016454
17	WCI 8016455
18	WCI 8016445
19	WCI 8016465
20	HARNESS-WIRE
21	WCI 8007670
22	WCI 8016437
23	WCI 8012687
24	WCI 8016436
25	WCI 8016440
26	WCI 8012701
27	WCI 8010917
28	CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
29	SCREW
34	WCI 8016540
35	WCI 8017387
