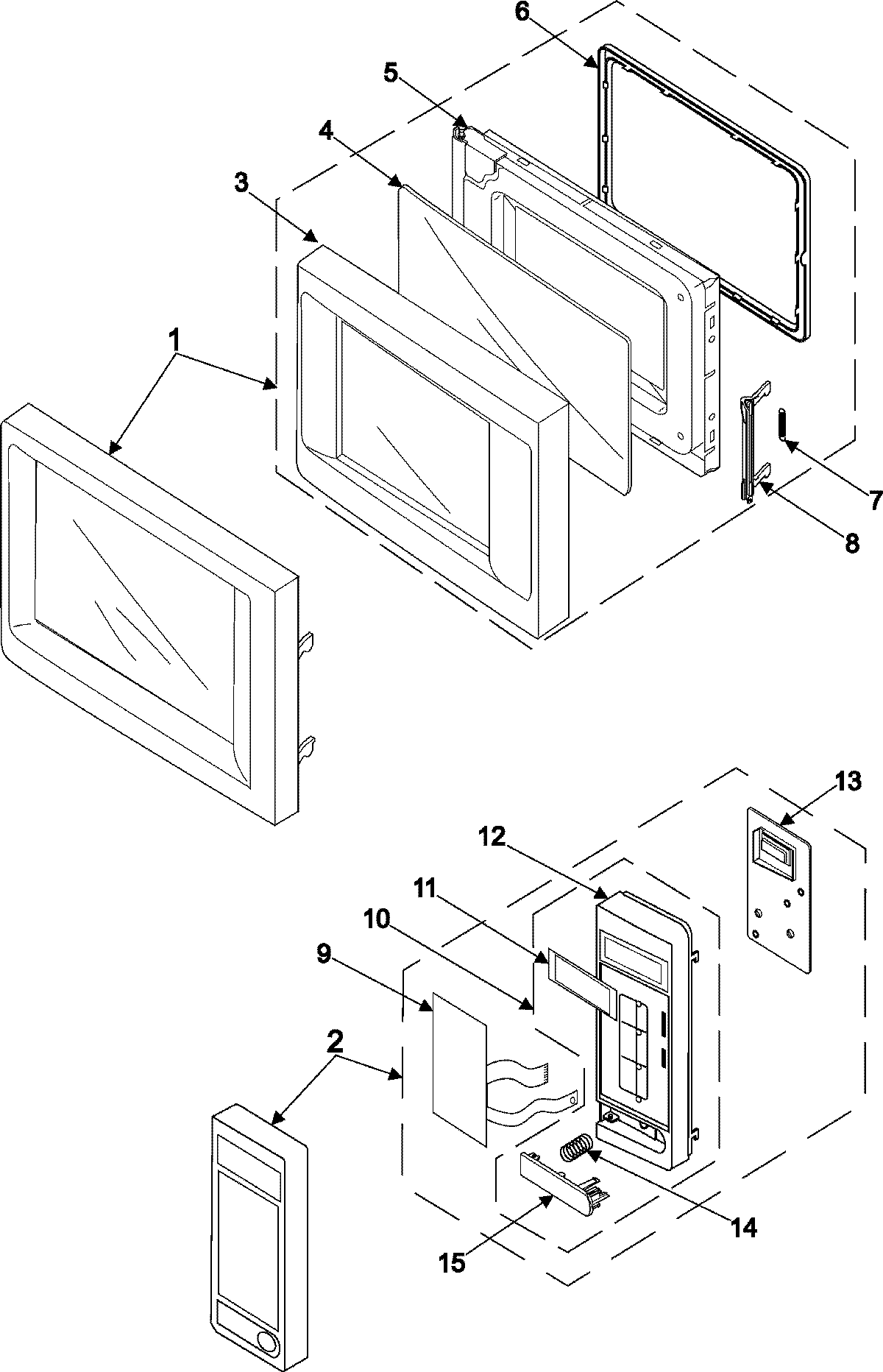

MR5493G 02 – CONTROL PANEL/DOOR ASSEMBLY

MR5493G 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

in

MR5493G 02 – CONTROL PANEL/DOOR ASSEMBLY

Products

Position	Product
1	MAY DE94-00075B
3	MAY DE64-00037E
4	MAY DE67-00011A
5	MAY DE94-00073B
6	MAY DE64-40012A
7	MAY DE61-70032A
8	MAY DE64-40006F
9	MAY DE34-00199A
11	MAY DE67-40003A
12	MAY DE72-70161B
13	MAY RA-W3USA-00
14	DE61-70076A Samsung Spring-Button
15	SEE NOTE GROUND WIRE, GREEN
