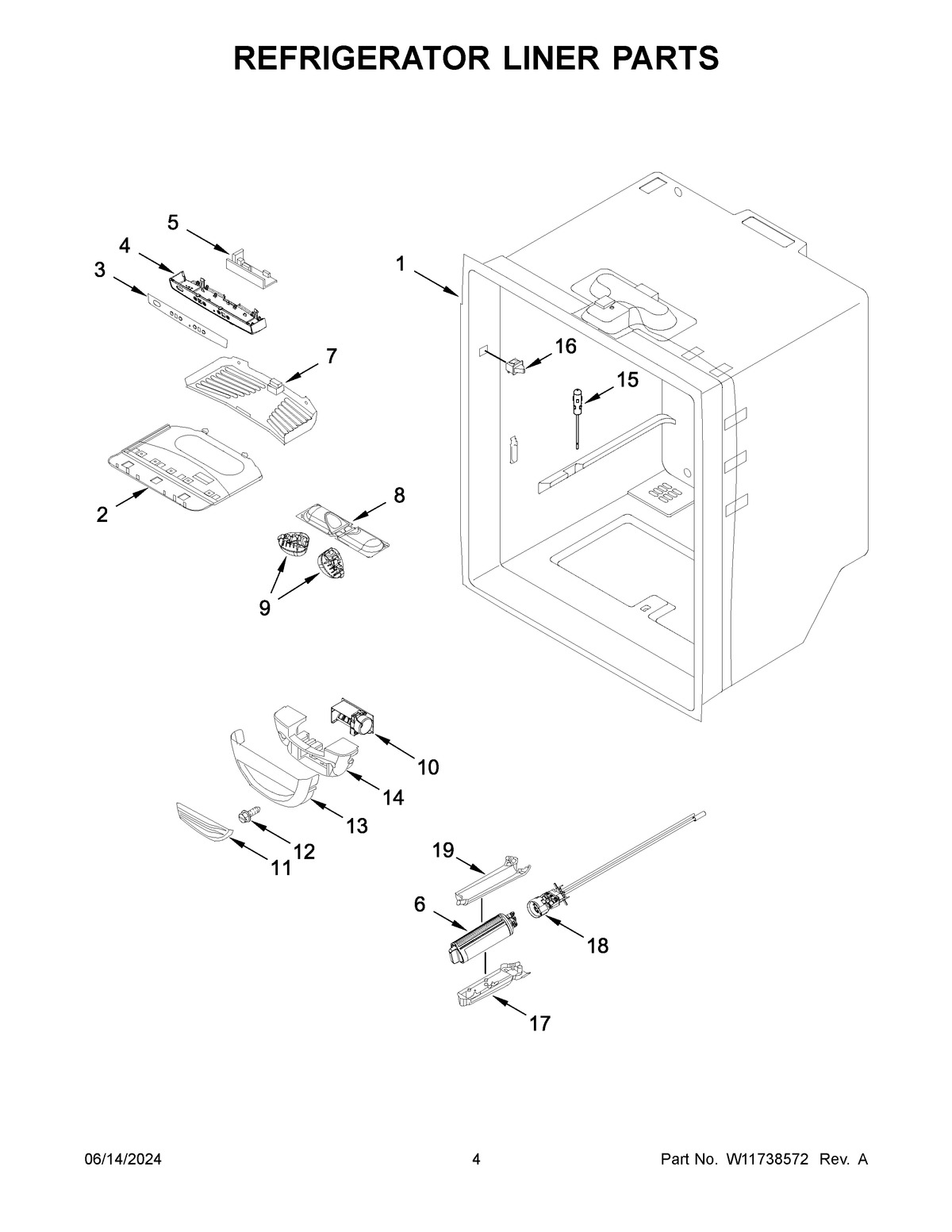

MRFF4136RZ01 03 – REFRIGERATOR LINER PARTS

MRFF4136RZ01 03 – REFRIGERATOR LINER PARTS

Written by

in

MRFF4136RZ01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11642013 Whirlpool Wire Harness
1LINER (NOT A SERVICEABLE PART)
2W10464764 Whirlpool Refrigerator Housing
3W11712701 Whirlpool Overlay
4W11416469 Whirlpool Refrigerator Housing
5W11642241-includeCORE Whirlpool W11642241 Refrigerator Electronic Control Board + Core
6EDRARXD1 Whirlpool Water Filter
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10CONTROL DAMPER
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15W11690896 Whirlpool Thermistor
16W11123941 Whirlpool Refrigerator Switch
17W11706224 Whirlpool Cover Back
18W11706228 Whirlpool Reservoir
19W11706225 Whirlpool Filter Cover
