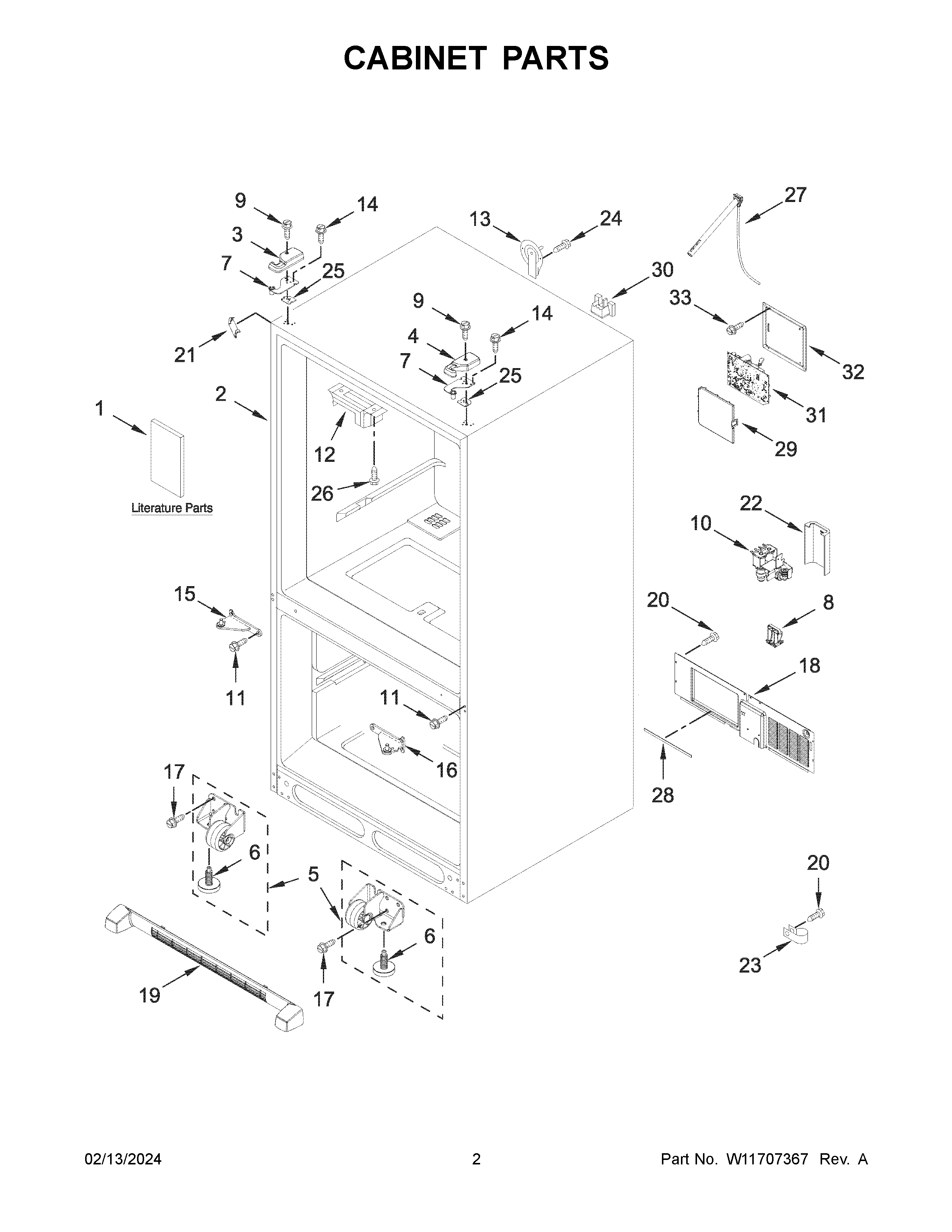

MRFF4236RZ00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	CABINET (NOT A SERVICABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
4	WPW10191117 Whirlpool Refrigerator Cover
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
7	W11592375 Whirlpool Door Hinge
8	W10528513 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10	W11524655 Whirlpool Refrigerator Valve
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	67006564 Whirlpool Refrigerator Screw
18	WPW10211855 Whirlpool Refrigerator Back Cover
19	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
20	SCREW
21	WP12587703AP Whirlpool Refrigerator Filler
22	W10208593 Whirlpool Refrigerator Valve Cover
23	W11456069 Whirlpool Refrigerator Clamp
24	WP489128 Whirlpool Refrigerator Screw
25A	12999502 Whirlpool Refrigerator Hinge Shim
25	12999501 Whirlpool Refrigerator Hinge Shim
26	W11693756 Whirlpool Screw Assembly
27	W11181718 Whirlpool Refrigerator Water Tube
28	W11534848 Whirlpool Gasket
29	W10296541 Whirlpool Refrigerator Wire Cover
30	W11686793 Whirlpool Block
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	12961602 Whirlpool Refrigerator Wire Cover
33	W11686675 Whirlpool Screw
